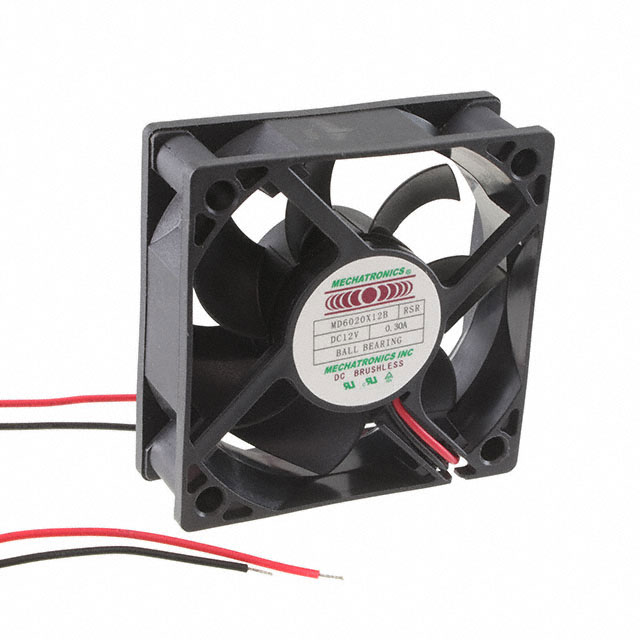

MD6020X12B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 60X20.2MM 12VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN AXIAL 60X20.2MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MD6020X12B-RSR

Air Flow	0.722 m³/min
Air Flow	25.8 CFM
Approval Agency	cUL, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	37 dB
RPM	4900 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.22 in H2O
Static Pressure	54.8 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	42.64 g
Weight	0.094 lb
Width [x]	20.2 mm

Part	Static Pressure	Static Pressure	Weight	Weight	Voltage - Rated	Approval Agency	RPM	Noise	Fan Type	Size / Dimension [x]	Size / Dimension [y]	Features	Termination	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Width [x]	Air Flow	Air Flow	Current Rating (Amps)
Mechatronics Bearing Group MD6020X12B-RSR	0.22 in H2O	54.8 Pa	42.64 g	0.094 lb	12 VDC	cUL TUV UL	4900 RPM	37 dB	Tubeaxial	60 mm	60 mm	Thermal Overload Protector (TOP)	2 Wire Leads	Ball	13.8 VDC	6 VDC	Polybutylene Terephthalate (PBT)	20.2 mm	0.722 m³/min	25.8 CFM
Mechatronics Bearing Group MD6020E12B-FSR	0.18 in H2O	44.8 Pa	42.64 g	0.094 lb	12 VDC	cUL TUV UL	4400 RPM	33.5 dB(A)	Tubeaxial	60 mm	60 mm	Thermal Overload Protector (TOP)	2 Wire Leads	Ball	13.8 VDC	6 VDC	Polybutylene Terephthalate (PBT)	20.2 mm	0.644 m³/min	23 CFM	0.22 A
Mechatronics Bearing Group MD6020L12B-FSR	0.07 in H2O	17.4 Pa	42.64 g	0.094 lb	12 VDC	cUL TUV UL	2700 RPM	23 dB(A)	Tubeaxial	60 mm	60 mm	Thermal Overload Protector (TOP)	2 Wire Leads	Ball	13.8 VDC	6 VDC	Polybutylene Terephthalate (PBT)	20.2 mm	0.389 m³/min	13.9 CFM	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.07

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 25.8 CFM (0.722m³/min) 2 Wire Leads
