TA7MSHF

Active

Switchcraft Inc.

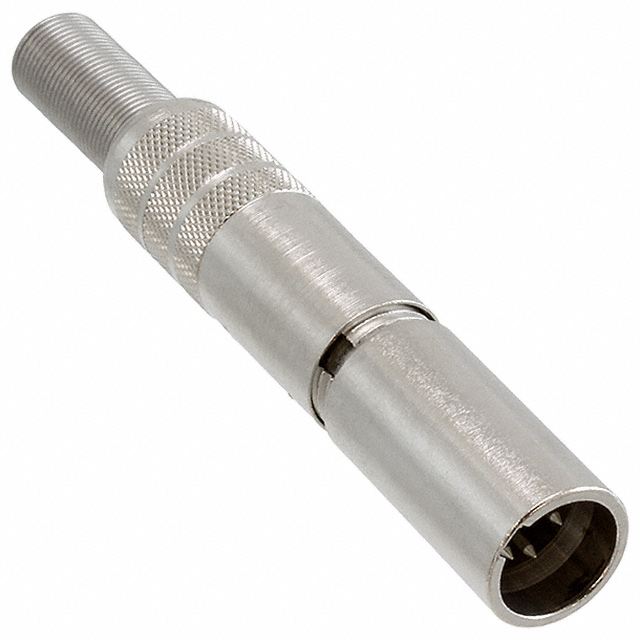

CONN RCPT MALE MINI XLR 7P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 7P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TA7MSHF

Applications	Audio, Medical
Backshell Material, Plating	Copper Alloy, Nickel
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Shielding	Shielded
Voltage Rating	125 VAC

CONN RCPT MALE MINI XLR 7P SLDR

Part	Contact Finish - Mating	Material Flammability Rating	Number of Positions	Applications	Backshell Material, Plating	Contact Material	Color	Shell Material	Insert Material	Connector Type	Shielding	Orientation	Primary Material	Current Rating (Amps)	Shell Finish	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Fastening Type	Mounting Type	Shell Size - Insert
Switchcraft Inc. TA7MSHF	Silver	UL94 V-0	7	Audio, Medical	Copper Alloy, Nickel	Copper Alloy	Silver	Copper Alloy	Thermoplastic	Male Pins, Receptacle	Shielded	Keyed	Metal	1.5 A	Nickel	Backshell, Cable Clamp, Ground, Strain Relief	85 °C	-55 °C	125 VAC	Latch Lock	Free Hanging (In-Line)	Mini XLR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup
