Specification	AT06-08SC-SRGN

Color	Green
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Strain Relief, Cap (Cover), Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

AT06-08SC Series

Part	Note	Color	Contact Type	Contact Termination	Connector Type	Number of Rows	Insulation Material	Mounting Type	Number of Positions	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Features	For Use With/Related Products	Accessory Type
McGill Microwave Systems AT06-08SC-SRGN	Contacts Not Included	Green	Female Socket	Crimp	Plug	2	Thermoplastic	Free Hanging (In-Line)	8	Latch Lock	125 °C	-55 °C	Cap (Cover) Sealed Strain Relief

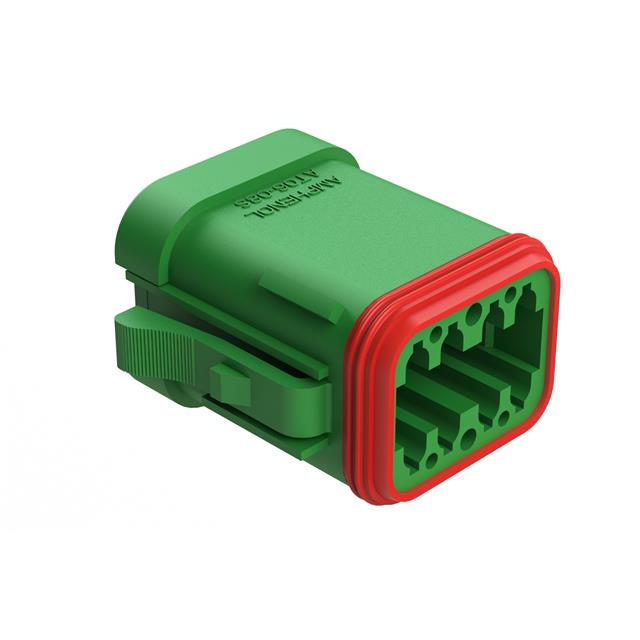

McGill Microwave Systems AT06-08SC-MM01	Contacts Not Included	Green	Female Socket	Crimp	Plug	2	Thermoplastic	Free Hanging (In-Line)	8	Latch Lock	125 °C	-55 °C	Cap (Cover) Sealed

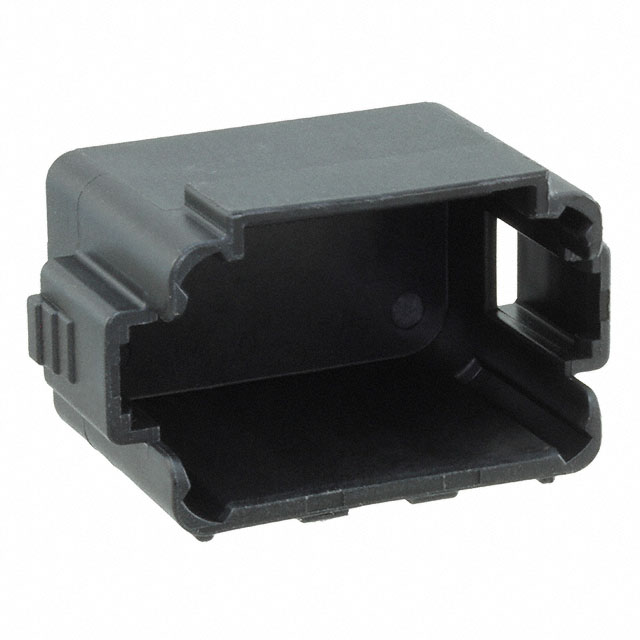

McGill Microwave Systems AT06-08S-CAP									8				IP67	AT Series™	Cap (Cover) Protective

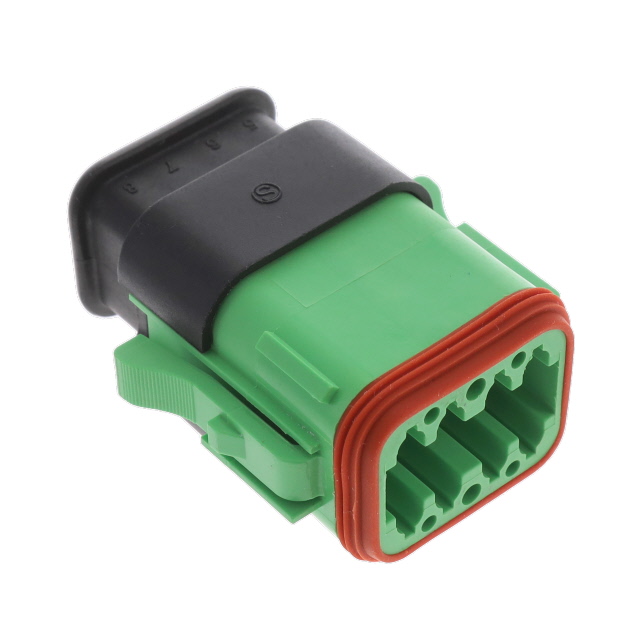

McGill Microwave Systems AT06-08SC-SR2GN	Contacts Not Included	Green	Female Socket	Crimp	Plug	2	Thermoplastic	Free Hanging (In-Line)	8	Latch Lock	125 °C	-55 °C	Cap (Cover) Sealed Strain Relief

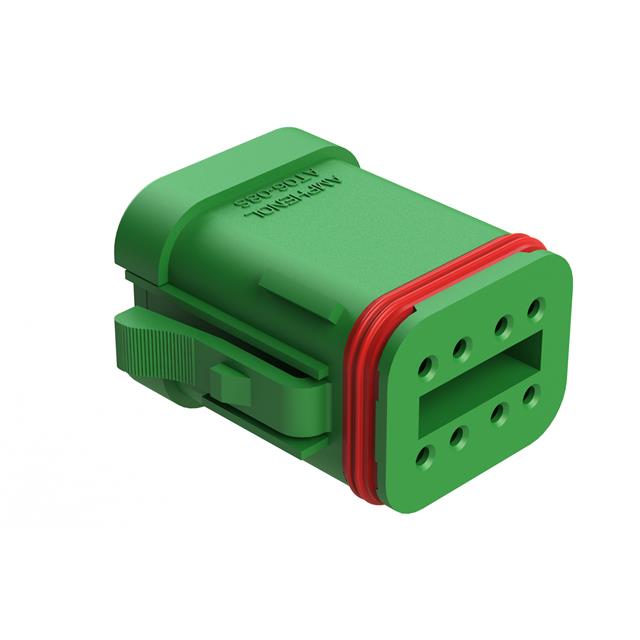

McGill Microwave Systems AT06-08SC-SS01	Contacts Not Included	Green	Female Socket	Crimp	Plug	2	Thermoplastic	Free Hanging (In-Line)	8	Latch Lock	125 °C	-55 °C	Cap (Cover) Sealed
