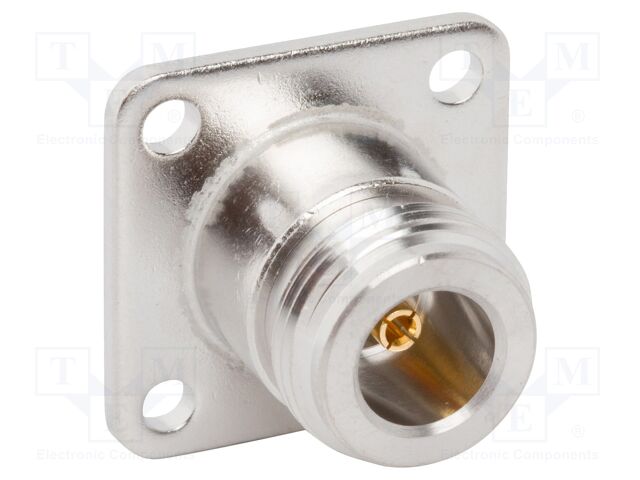

Specification	172216

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-200, Belden 7807A
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Jack, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	11 GHz
Housing Color	Silver
Impedance	50 Ohm
Includes	Ferrule, Connector, Contact
Includes Total Count	3 pcs
Insertion Loss	0.15 dB
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp
Voltage Rating	1500 V

1722 Series

Part	Shield Termination	Connector Style	Mounting Type	Housing Color	Cable Group Diameter (Semi Rigid)	Cable Group	Center Contact Material	Frequency - Max	Contact Termination	Impedance	Connector Type	Number of Ports	Fastening Type	Body Finish	Includes	Includes Total Count	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Insertion Loss	Dielectric Material	Mating Cycles	Body Material	Ingress Protection	Mounting Feature	Cable Group Diameter (Default)
McGill Microwave Systems 172238	Solder	N Type	Free Hanging (In-Line)	Silver	0.141 in	RG-402	Phosphor Bronze	11 GHz	Crimp	50 Ohm	Female Socket Jack	1	Threaded	White Bronze	Connector Contact Insulator Nut	4 pcs	1500 V	-65 °C	165 °C	Gold	0.15 dB	Polytetrafluoroethylene (PTFE)	500 cycles	Brass
McGill Microwave Systems 172243	Solder	N Type	Panel Mount Through Hole	Silver			Beryllium Copper	11 GHz	Solder	50 Ohm	Female Socket Recepture	1	Threaded	White Bronze	Connector Gasket Lockwasher Nut	4 pcs	1500 V	-65 °C	165 °C	Gold	0.15 dB	Polytetrafluoroethylene (PTFE)	500 cycles	Brass	Weatherproof	Bulkhead Front Side Nut
McGill Microwave Systems 172215	Crimp	N Type	Free Hanging (In-Line) Right Angle	Silver		Belden 7807A LMR-200	Brass	11 GHz	Solder	50 Ohm	Male Pin Plug	1	Threaded	Nickel	Connector End Cap Ferrule	3 pcs	1500 V	-65 °C	165 °C	Gold	0.15 dB	Polytetrafluoroethylene (PTFE)	500 cycles	Brass
McGill Microwave Systems 172216	Crimp	N Type	Free Hanging (In-Line)	Silver		Belden 7807A LMR-200	Phosphor Bronze	11 GHz	Crimp	50 Ohm	Female Socket Jack	1	Threaded	White Bronze	Connector Contact Ferrule	3 pcs	1500 V	-65 °C	165 °C	Gold	0.15 dB	Polytetrafluoroethylene (PTFE)	500 cycles	Brass
McGill Microwave Systems 172210	Solder	N Type	Panel Mount	Silver			Phosphor Bronze	11 GHz	Solder Cup	50 Ohm	Female Socket Recepture	1	Threaded	White Bronze			1500 V	-65 °C	165 °C	Gold	0.15 dB	Polytetrafluoroethylene (PTFE)	500 cycles	Brass		Flange
McGill Microwave Systems 172211	Solder	N Type	Free Hanging (In-Line)	Silver	0.086 in	RG-405	Brass	11 GHz	Crimp	50 Ohm	Male Pin Plug	1	Threaded	White Bronze	Connector Contact Insulator Nut	4 pcs	1500 V	-65 °C	165 °C	Gold	0.15 dB	Polytetrafluoroethylene (PTFE)	500 cycles	Brass	Weatherproof		0.085 in
McGill Microwave Systems 172208	Crimp	N Type	Panel Mount	Silver		141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Phosphor Bronze	11 GHz	Crimp	50 Ohm	Female Socket Jack	1	Threaded	White Bronze	Connector Contact Ferrule	3 pcs	1500 V	-65 °C	165 °C	Gold	0.15 dB	Polytetrafluoroethylene (PTFE)	500 cycles	Brass		Flange
McGill Microwave Systems 172223	Clamp	N Type	Panel Mount	Silver		188 188A 316 LMR-100 M17/119-RG174 RG-174	Brass	11 GHz	Solder	50 Ohm	Female Socket Jack	1	Threaded	White Bronze	Braid Clamp Clamp Connector Contact Gasket Insulators Lockwasher Nut Top Hat Washer	11 pcs	1500 V	-65 °C	165 °C	Gold	0.15 dB	Polytetrafluoroethylene (PTFE)	500 cycles	Brass	Weatherproof	Bulkhead Rear Side Nut
McGill Microwave Systems 172236	Solder	N Type	Free Hanging (In-Line) Right Angle	Silver	0.141 in	RG-402	Brass	11 GHz	Solder	50 Ohm	Male Pin Plug	1	Threaded	White Bronze	Connector End Cap	2 pcs	1500 V	-65 °C	165 °C	Gold	0.15 dB	Polytetrafluoroethylene (PTFE)	500 cycles	Brass	Weatherproof
McGill Microwave Systems 172235	Solder	N Type	Free Hanging (In-Line) Right Angle	Silver	0.086 in	RG-405	Brass	11 GHz	Solder	50 Ohm	Male Pin Plug	1	Threaded	White Bronze	Connector End Cap	2 pcs	1500 V	-65 °C	165 °C	Gold	0.15 dB	Polytetrafluoroethylene (PTFE)	500 cycles	Brass			0.085 in
