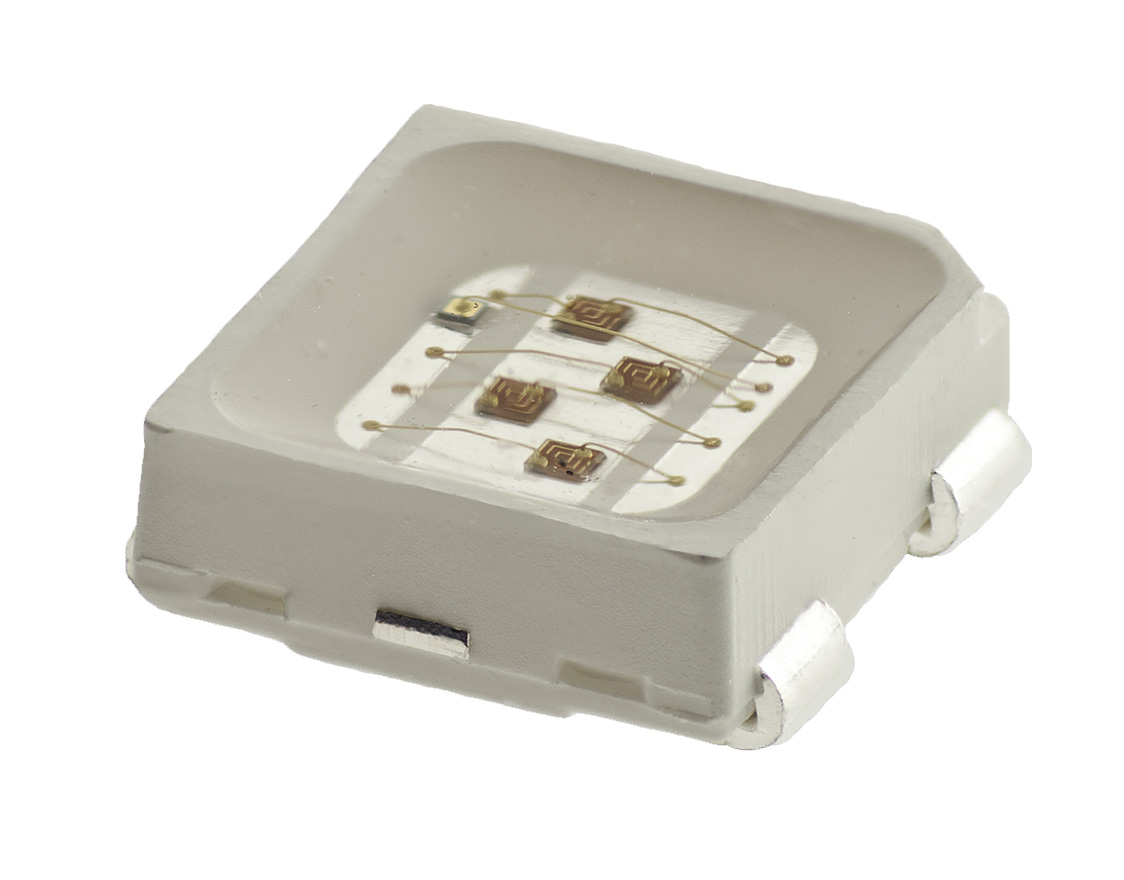

Specification	MLERED-A1-0000-000W01

Color	Red
Current - Max	350 mA
Current - Test	150 mA
Height - Seated (Max)	0.052 in
Lumens/Watt	69 lm/W
Luminous Flux	25 lm
Luminous Flux (Maximum)	27 lm
Luminous Flux (Minimum)	24 lm
Mounting Type	Surface Mount
Package / Case	4-SMD, J-Lead Exposed Pad
Package Name	SMD
Size / Dimension Length	0.138 in
Size / Dimension Width	0.124 in
Temperature - Test	25 °C
Thermal Resistance of Package	15 °C/W
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	2.4 V
Wavelength	625 nm
Wavelength (Maximum)	630 nm
Wavelength (Minimum)	620 nm
Wavelength (Nominal)	625 nm

MLERED Series

Part	Luminous Flux (Minimum)	Luminous Flux (Maximum)	Luminous Flux	Lumens/Watt	Color	Temperature - Test	Current - Test	Size / Dimension Length	Size / Dimension Width	Mounting Type	Height - Seated (Max)	Package Name	Viewing Angle	Package / Case	Wavelength (Nominal)	Wavelength (Maximum)	Wavelength	Wavelength (Minimum)	Voltage - Forward (Vf) (Typ)	Current - Max	Thermal Resistance of Package
CreeLED, Inc. MLERED-A1-0000-000V01	18 lm	24 lm	21 lm	58 lm/W	Red	25 °C	150 mA	0.138 in	0.124 in	Surface Mount	0.052 in	SMD	125 °	4-SMD J-Lead Exposed Pad	625 nm	630 nm	625 nm	620 nm	2.4 V	350 mA	15 °C/W
CreeLED, Inc. MLERED-A1-0000-000W03	24 lm	27 lm	25 lm	69 lm/W	Red	25 °C	150 mA	0.138 in	0.124 in	Surface Mount	0.052 in	SMD	125 °	4-SMD J-Lead Exposed Pad	628 nm	630 nm	628 nm	625 nm	2.4 V	350 mA
CreeLED, Inc. MLERED-A1-0000-000W01	24 lm	27 lm	25 lm	69 lm/W	Red	25 °C	150 mA	0.138 in	0.124 in	Surface Mount	0.052 in	SMD	125 °	4-SMD J-Lead Exposed Pad	625 nm	630 nm	625 nm	620 nm	2.4 V	350 mA	15 °C/W

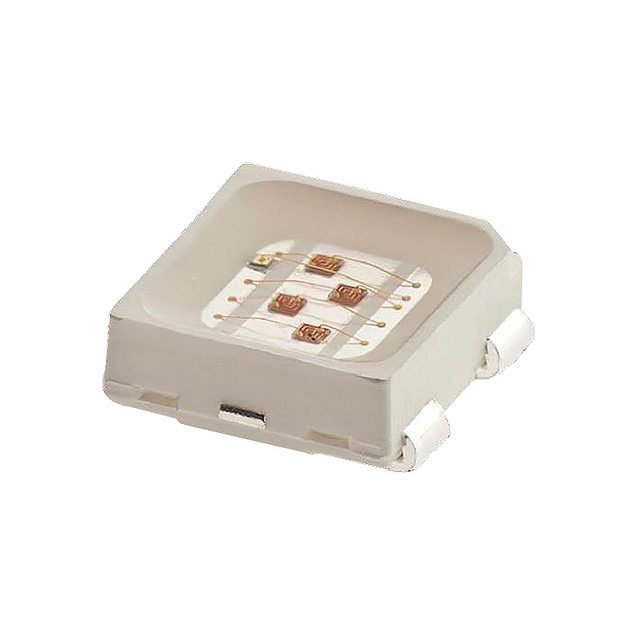

CreeLED, Inc. MLERED-A1-0000-000U01	14 lm	18 lm	16 lm	44 lm/W	Red	25 °C	150 mA	0.138 in	0.124 in	Surface Mount	0.052 in	SMD	125 °	4-SMD J-Lead Exposed Pad	625 nm	630 nm	625 nm	620 nm	2.4 V	350 mA
CreeLED, Inc. MLERED-A1-0000-000U01	14 lm	18 lm	16 lm	44 lm/W	Red	25 °C	150 mA	0.138 in	0.124 in	Surface Mount	0.052 in	SMD	125 °	4-SMD J-Lead Exposed Pad	625 nm	630 nm	625 nm	620 nm	2.4 V	350 mA	15 °C/W
CreeLED, Inc. MLERED-A1-0000-000W03	24 lm	27 lm	25 lm	69 lm/W	Red	25 °C	150 mA	0.138 in	0.124 in	Surface Mount	0.052 in	SMD	125 °	4-SMD J-Lead Exposed Pad	628 nm	630 nm	628 nm	625 nm	2.4 V	350 mA	15 °C/W
