Description Specifications Series Pricing CAD Documents

Description

General part information

PQC250 Series

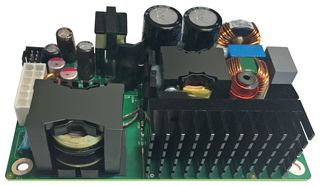

The PQC250-24 from Murata Power Solutions is a PQC250 series 250W convection cooled AC to DC base model power supply. It utilizes advanced component and circuit technologies to deliver high efficiency and low power dissipation in both operational and standby operation in a compact 3" x 5" x 1.4" package. Designed for medical, computing, communications, telecom, industrial, consumer and other OEM applications, deployable in 1U customer systems. It offers universal AC input capability with active power factor correction (PFC) and compliance to worldwide safety and EMC standards. It features very low no load standby power, designed to meet ENERGY STAR® program requirements for single voltage external AC-DC power supply.

Technical Specifications

Parameters and characteristics for this part

Specification	PQC250-24

Applications	ITE (Commercial), Medical
Approval Agency	CE, TUV, cCSAus, CB, CCC
Current - Output 1	10.4 A
Efficiency	95 %
Features	PFC, Remote Sense, Load Sharing, Universal Input, Standby Output
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-10 °C
Power (Watts)	250 W
Size / Dimension Height	1.38 in
Size / Dimension Length	5 in
Size / Dimension Width	3 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	24 V

PQC250 Series

Part	Minimum Load Required	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Voltage - Isolation	Approval Agency	Mounting Type	Power (Watts)	Voltage - Output 1	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Efficiency	Type	Number of Outputs	Features	Current - Output 1
Murata Electronics PQC250-12D	No	5 in	1.38 in	3 in	4000 Vpk	BMSI CB CCC cCSAus CE TUV	Chassis Mount	250 W	12 V	ITE (Commercial) Medical	70 °C	-10 °C	90 V	264 V	95 %	Open Frame	1	Load Sharing PFC Remote Sense Standby Output Universal Input	20.8 A
Murata Electronics PQC250-24CRT	No	5 in	1.39 in	3 in	4000 Vpk	CB CCC cCSAus CE TUV	Chassis Mount	250 W	24 V	Household Appliances ITE (Commercial) Medical	70 °C	-10 °C	90 V	264 V	95 %	Open Frame	1	Load Sharing PFC Remote Sense Standby Output Universal Input	10.4 A
Murata Electronics PQC250-24D	No	5 in	1.38 in	3 in	4000 Vpk	CB CCC cCSAus CE TUV	Chassis Mount	250 W	24 V	ITE (Commercial) Medical	70 °C	-10 °C	90 V	264 V	95 %	Open Frame	1	Load Sharing PFC Remote Sense Standby Output Universal Input	10.4 A
Murata Electronics PQC250-36	No	5 in	1.38 in	3 in	4000 Vpk	CB CCC cCSAus CE TUV	Chassis Mount	250 W	36 V	ITE (Commercial) Medical	70 °C	-10 °C	90 V	264 V	95 %	Open Frame	1	Load Sharing PFC Remote Sense Standby Output Universal Input	6.94 A
Murata Electronics PQC250-24	No	5 in	1.38 in	3 in	4000 Vpk	CB CCC cCSAus CE TUV	Chassis Mount	250 W	24 V	ITE (Commercial) Medical	70 °C	-10 °C	90 V	264 V	95 %	Open Frame	1	Load Sharing PFC Remote Sense Standby Output Universal Input	10.4 A
Murata Electronics PQC250-12	No	5 in	1.38 in	3 in	4000 Vpk	BMSI CB CCC cCSAus CE TUV	Chassis Mount	250 W	12 V	ITE (Commercial) Medical	70 °C	-10 °C	90 V	264 V	95 %	Open Frame	1	Load Sharing PFC Remote Sense Standby Output Universal Input	20.8 A
Murata Electronics PQC250-48D	No	5 in	1.38 in	3 in	4000 Vpk	CB CCC cCSAus CE TUV	Chassis Mount	250 W	48 V	ITE (Commercial) Medical	70 °C	-10 °C	90 V	264 V	95 %	Open Frame	1	Load Sharing PFC Remote Sense Standby Output Universal Input	5.2 A
Murata Electronics PQC250-54D	No	5 in	1.38 in	3 in	4000 Vpk	CB CCC cCSAus CE TUV	Chassis Mount	250 W	54 V	ITE (Commercial) Medical	70 °C	-10 °C	90 V	264 V	95 %	Open Frame	1	Load Sharing PFC Remote Sense Standby Output Universal Input	4.6 A
Murata Electronics PQC250-54DRT	No	5 in	1.38 in	3 in	4000 Vpk	CB CCC cCSAus CE TUV	Chassis Mount	248 W	54 V	ITE (Commercial) Medical	70 °C	-10 °C	90 V	264 V	95 %	Open Frame	1	Load Sharing PFC Remote Sense Standby Output Universal Input	4.6 A
Murata Electronics PQC250-24DRT	No	5 in	1.38 in	3 in	4000 Vpk	CB CCC cCSAus CE TUV	Chassis Mount	250 W	24 V	ITE (Commercial) Medical	70 °C	-10 °C	90 V	264 V	95 %	Open Frame	1	Load Sharing PFC Remote Sense Standby Output Universal Input	10.4 A
