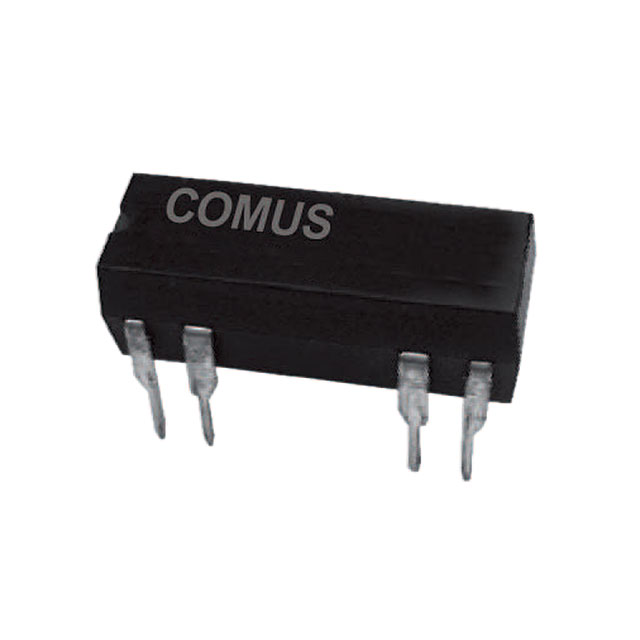

3570-1210-241

Active

Comus International

RELAY REED DIP SPST .5A 24V

Search across all available documentation for this part.

Active

Comus International

RELAY REED DIP SPST .5A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY REED DIP SPST .5A 5V W/DIO

Part	Release Time	Features	Contact Form	Contact Rating (Current)	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage	Must Operate Voltage	Must Release Voltage	Coil Current	Coil Resistance	Operate Time	Coil Type	Coil Voltage
Comus International 3570-1210-054	0.5 ms	Diode, Electrostatic Shield	SPST-NO (1 Form A)	0.5 A	Through Hole	PC Pin	85 °C	-20 C	150 VDC	3.75 VDC	0.6 VDC	10 mA	500 Ohms	500 µs	Non Latching	5 VDC
Comus International 3570-1210-241	0.5 ms		SPST-NO (1 Form A)	0.5 A	Through Hole	PC Pin	85 °C	-20 C	150 VDC	18 VDC	2 VDC	11 mA	2.15 kOhms	500 µs	Non Latching	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED DIP SPST .5A 24V
