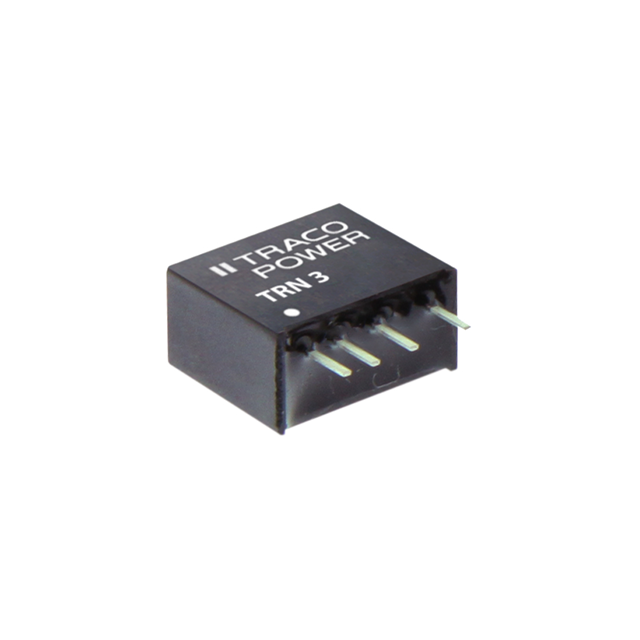

TRN 3-1221

Active

Traco Power

DC DC CONVERTER +/-5V 3W

TRN 3-1221

Active

Traco Power

DC DC CONVERTER +/-5V 3W

Description Specifications Series Pricing CAD Documents

Description

General part information

TRN 3 Series

Isolated DC/DC Converters - Through Hole

Technical Specifications

Parameters and characteristics for this part

Specification	TRN 3-1221

Applications	ITE (Commercial)
Current - Output (Max)	300 mA
Efficiency	78 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	5-SIP Module
Power (Watts)	3 W
Size / Dimension Height	0.43 in
Size / Dimension Length	0.47 in
Size / Dimension Width	0.3 in
Type	Isolated Module
Voltage - Input (Max)	18 V
Voltage - Input (Min)	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

TRN 3 Series

Isolated DC/DC Converters - Through Hole

Part	Type	Number of Outputs	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Voltage - Input (Min)	Features	Current - Output (Max)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Mounting Type	Voltage - Output 1	Efficiency	Package Leads	Package Name	Power (Watts)	Voltage - Input (Max)	Voltage - Isolation	Package / Case	Voltage - Output 2	Current - Output (Max) Options
Traco Power TRN 3-4815SM	Isolated Module	1	-40 °C	85 °C	ITE (Commercial)	36 V	SCP	125 mA	0.31 in	0.47 in	0.44 in	Surface Mount	24 V	82 %	6 Leads	7-SMD Module	3 W	75 V	1.6 kV
Traco Power TRN 3-1221	Isolated Module	2	-40 °C	85 °C	ITE (Commercial)	9 V	SCP	300 mA	0.43 in	0.47 in	0.3 in	Through Hole	5 V	78 %			3 W	18 V	1.6 kV	5-SIP Module	-5 V
Traco Power TRN 3-1213SM	Isolated Module	1	-40 °C	85 °C	ITE (Commercial)	9 V	SCP	200 mA	0.31 in	0.47 in	0.44 in	Surface Mount	15 V	83 %	6 Leads	7-SMD Module	3 W	18 V	1.6 kV
Traco Power TRN 3-2423	Isolated Module	2	-40 °C	85 °C	ITE (Commercial)	18 V	SCP		0.43 in	0.47 in	0.3 in	Through Hole	15 V	82 %			3 W	36 V	1.6 kV	5-SIP Module	-15 V	100mA
Traco Power TRN 3-1223	Isolated Module	2	-40 °C	85 °C	ITE (Commercial)	9 V	SCP		0.43 in	0.47 in	0.3 in	Through Hole	15 V	81 %			3 W	18 V	1.6 kV	5-SIP Module	-15 V	100mA
Traco Power TRN 3-1210SM	Isolated Module	1	-40 °C	85 °C	ITE (Commercial)	9 V	SCP	700 mA	0.31 in	0.47 in	0.44 in	Surface Mount	3.3 V	76 %	6 Leads	7-SMD Module	2.3 W	18 V	1.6 kV
Traco Power TRN 3-4813SM	Isolated Module	1	-40 °C	85 °C	ITE (Commercial)	36 V	SCP	200 mA	0.31 in	0.47 in	0.44 in	Surface Mount	15 V	83 %	6 Leads	7-SMD Module	3 W	75 V	1.6 kV
Traco Power TRN 3-4812	Isolated Module	1	-40 °C	85 °C	ITE (Commercial)	36 V	SCP	250 mA	0.43 in	0.47 in	0.3 in	Through Hole	12 V	83 %	4 Leads	5-SIP Module	3 W	75 V	1.6 kV
Traco Power TRN 3-2411	Isolated Module	1	-40 °C	85 °C	ITE (Commercial)	18 V	SCP	600 mA	0.43 in	0.47 in	0.3 in	Through Hole	5 V	78 %	4 Leads	5-SIP Module	3 W	36 V	1.6 kV
Traco Power TRN 3-0522	Isolated Module	2	-40 °C	85 °C	ITE (Commercial)	4.5 V	SCP	125 mA	0.43 in	0.47 in	0.3 in	Through Hole	12 V	80 %			3 W	13.2 V	1.6 kV	5-SIP Module	-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TRN 3-1221 | Datasheet

Datasheet
