JC1AF-S-DC24V
ObsoletePanasonic Electric Works

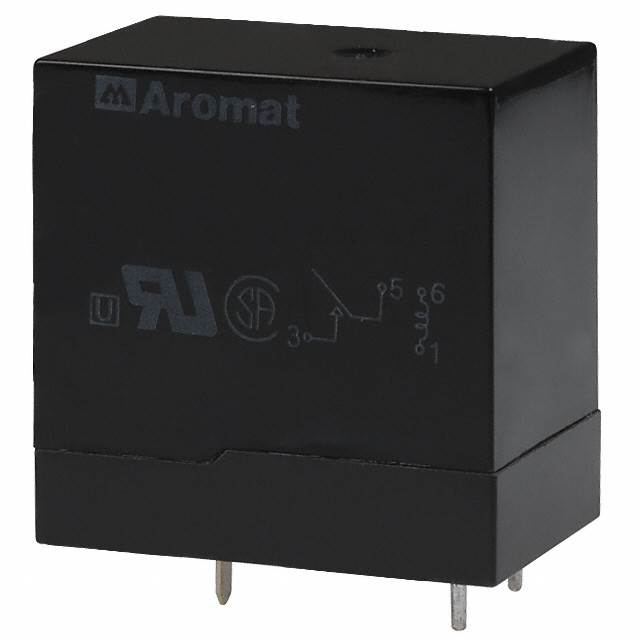

RELAY GEN PURPOSE SPST 15A 24V
Deep-Dive with AI
Search across all available documentation for this part.
JC1AF-S-DC24V
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE SPST 15A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JC1AF-S-DC24V |
|---|---|
| Approval Agency | TUV, VDE, CSA, UR |
| Coil Current | 37.5 mA |
| Coil Resistance | 640 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 15 A |
| Load - Max Switching | 3750 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -50 °C |
| Relay Type | General Purpose |
| Release Time | 2 ms |
| Switching Voltage | 250 VAC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
JC1AF-S Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Socketable
