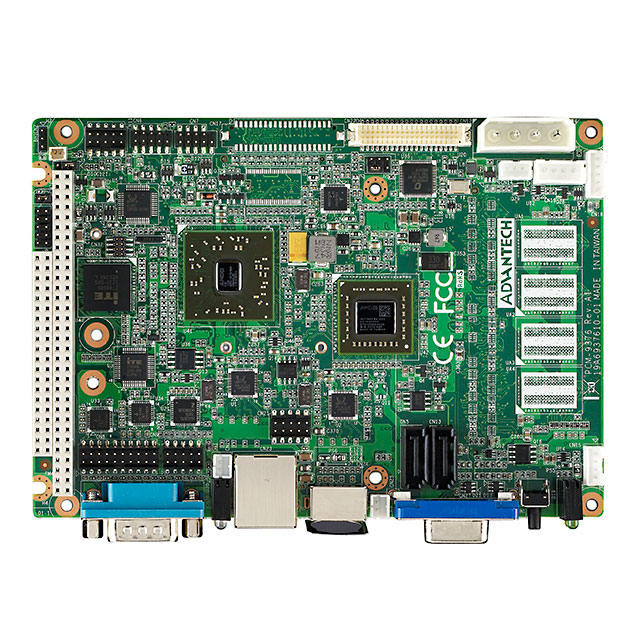

PCM-9376E-1GM0A1E
ActiveAdvantech Corp
SBC 615MHZ 1 CORE 4GB/1GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCM-9376E-1GM0A1E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | AMD G-Series T16R |
| Digital I/O Lines | 8 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | PC/104, LPC, mPCIe |
| Form Factor | 3.5 in |
| Number of Cores | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 7.2 W |
| RAM Capacity/Installed | 4 GB, 1 GB |
| RS-232 (422, 485) | 3 |
| Size / Dimension [x] | 5.7 " |
| Size / Dimension [x] | 144.78 mm |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Speed | 615 MHz |
| Storage Interface | SATA2, mSATA |
| USB | USB 2.0 (4) |
| Video Outputs | TTL, VGA, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PCM-9376 Series
Single Board Computer 615MHz 1 Core 4GB/1GB RAM AMD G-Series T16R
