1003666-02
ActiveKYOCERA AVX
BOARD 1001388 1001430 1002298
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1003666-02
ActiveKYOCERA AVX
BOARD 1001388 1001430 1002298
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1003666-02 | 1002298 Series |
|---|---|---|
| Antenna Type | - | Stamped Metal |
| Applications | - | WLAN, Bluetooth, Wi-Fi, Zigbee™ |
| Frequency (Center/Band) | - | 2.4425 - 5.875 GHz |
| Frequency [Max] | 2.485 GHz, 2.825 GHz | 2.485 - 2.825 GHz |
| Frequency [Min] | 2.4 GHz, 5.15 GHz | 2.4 - 5.15 GHz |
| Frequency Group | - | 4 GHz |
| Frequency Group | - | 2 GHz |
| Frequency Group | - | 3 GHz |
| Frequency Range | - | 2.485 - 5.925 GHz |
| Frequency Range | - | 2.4 - 5.825 GHz |
| Gain | - | 3.6 - 5.1 dBi |
| Height (Max) | - | 10.55 mm |
| Height (Max) | - | 0.415 in |
| Mounting Type | - | Surface Mount |
| Number of Bands | - | 3 |
| Power - Max | - | 500 mW |
| RF Family/Standard | - | WiFi, Bluetooth, 802.15.4 |
| Supplied Contents | Board(s) | Board(s) |
| Termination | - | Solder |
| Type | Antenna | Antenna |
| VSWR | - | 2 |
1002298 Series
ANTENNA WLAN
| Part | Height (Max) [Max] | Height (Max) [Max] | Termination | Number of Bands | Frequency (Center/Band) | Applications | Frequency Group | Frequency Group [Min] | Frequency Group [Max] | Mounting Type | Power - Max [Max] | VSWR | Gain | RF Family/Standard | Antenna Type | Frequency Range [Max] | Frequency Range [Min] | Supplied Contents | Frequency [Min] | Frequency [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KYOCERA AVX 1002298 | 10.55 mm | 0.415 in | Solder | 3 | 2.4425 GHz, 5.4875 GHz, 5.875 GHz | Bluetooth, Wi-Fi, WLAN, Zigbee™ | 4 GHz | 2 GHz | 3 GHz | Surface Mount | 500 mW | 2 | 3.6 dBi, 3.8 dBi, 5.1 dBic | 802.15.4, Bluetooth, WiFi | Stamped Metal | 2.485 GHz, 5.825 GHz, 5.925 GHz | 2.4 GHz, 5.15 GHz, 5.825 GHz | ||||
KYOCERA AVX 1003666-02 | Board(s) | 2.4 GHz, 5.15 GHz | 2.485 GHz, 2.825 GHz | Antenna |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 37.70 | |
| 10 | $ 28.52 | |||
| 25 | $ 26.17 | |||
| 100 | $ 23.55 | |||
| 250 | $ 22.50 | |||
Description
General part information
1002298 Series

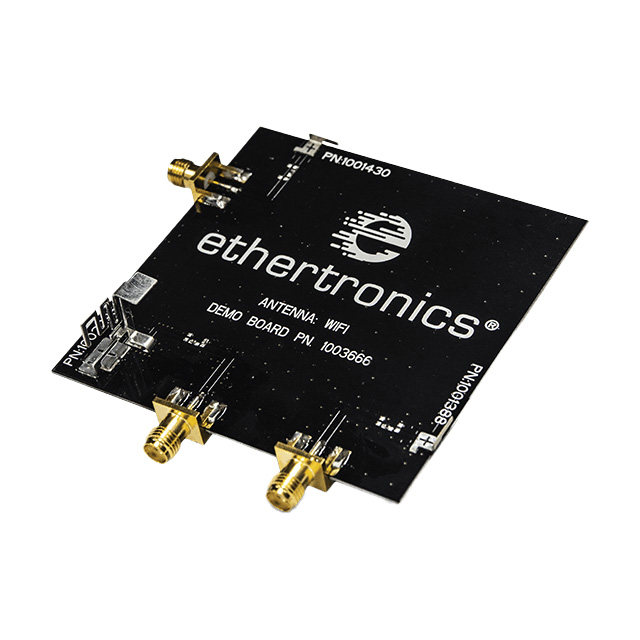

1001388, 1001430, 1002298 - Antenna 2.4GHz ~ 2.485GHz, 5.15GHz ~ 2.825GHz Evaluation Board
Documents
Technical documentation and resources
