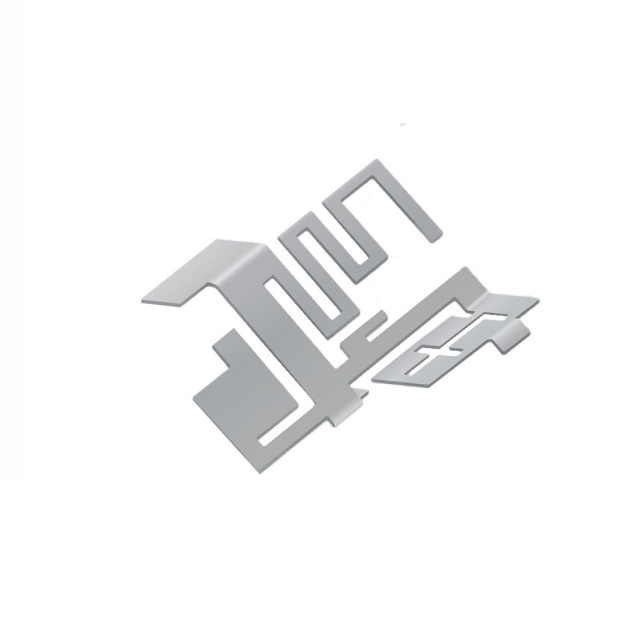

1002298

Active

KYOCERA AVX

ANTENNA WLAN

Search across all available documentation for this part.

Active

KYOCERA AVX

ANTENNA WLAN

Technical Specifications

Parameters and characteristics commom to parts in this series

ANTENNA WLAN

Part	Height (Max) [Max]	Height (Max) [Max]	Termination	Number of Bands	Frequency (Center/Band)	Applications	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Mounting Type	Power - Max [Max]	VSWR	Gain	RF Family/Standard	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Supplied Contents	Frequency [Min]	Frequency [Max]	Type
KYOCERA AVX 1002298	10.55 mm	0.415 in	Solder	3	2.4425 GHz, 5.4875 GHz, 5.875 GHz	Bluetooth, Wi-Fi, WLAN, Zigbee™	4 GHz	2 GHz	3 GHz	Surface Mount	500 mW	2	3.6 dBi, 3.8 dBi, 5.1 dBic	802.15.4, Bluetooth, WiFi	Stamped Metal	2.485 GHz, 5.825 GHz, 5.925 GHz	2.4 GHz, 5.15 GHz, 5.825 GHz
KYOCERA AVX 1003666-02																		Board(s)	2.4 GHz, 5.15 GHz	2.485 GHz, 2.825 GHz	Antenna

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Stamped Metal Solder Surface Mount
