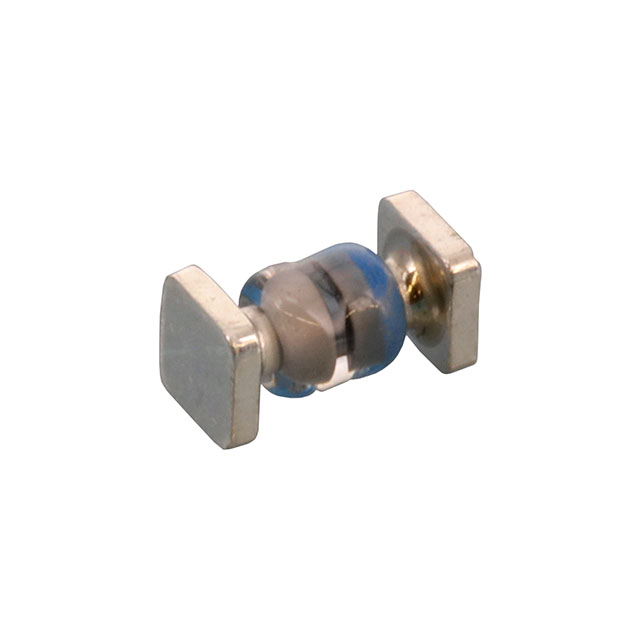

UM7306SM
ActiveLOW-DISTORTION-PIN-ATTENUATOR
Deep-Dive with AI
Search across all available documentation for this part.
UM7306SM
ActiveLOW-DISTORTION-PIN-ATTENUATOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UM7306SM |
|---|---|
| Diode Type | PIN - Single |
| Voltage - Peak Reverse (Max) [Max] | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Microchip Direct | N/A | 1 | $ 42.68 | |
| 50 | $ 40.95 | |||
| 100 | $ 38.52 | |||
| 250 | $ 36.79 | |||
| 500 | $ 35.41 | |||
| 1000 | $ 34.69 | |||
UM7306 Series
Low-Distortion-PIN-Attenuator
| Part | Diode Type | Voltage - Peak Reverse (Max) [Max] |
|---|---|---|
Microchip Technology UM7306SM | PIN - Single | 600 V |
Description
General part information
UM7306 Series
The UM4300 and UM7300 series combine a diode chip of extremely thick intrinsic region with a low thermal resistance construction. This results in diodes uniquely applicable to very low distortion linear attenuators and specialized functions. The UM4300 series, with large cross-sectional chip area offers the highest power capability, of the two series. The UM7300 series offers lower capacitance.
