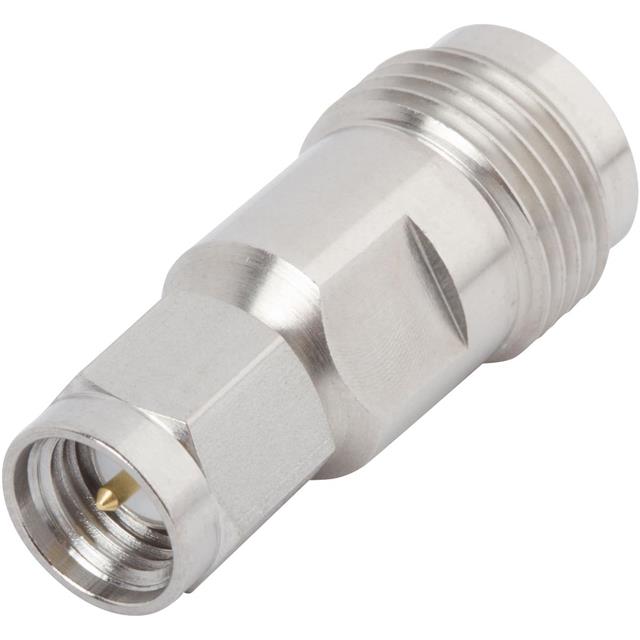

SF1108-6001

Active

Amphenol SV Microwave

SMA MALE TO PTNC FEMALE ADAPTER /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

SMA MALE TO PTNC FEMALE ADAPTER /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Technical Specifications

Parameters and characteristics for this part

Specification	SF1108-6001

Adapter Series	SMA to PTNC
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	PTNC Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	15 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Convert To (Adapter End)	Dielectric Material	Mounting Type	Mating Cycles	Convert From (Adapter End)	Center Contact Material	Conversion Type	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Style	Adapter Type	Body Material	Center Contact Plating	Impedance	Frequency - Max [Max]
Amphenol SV Microwave SF1108-6001	Female Socket PTNC Jack	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	500	SMA Plug Male Pin	Beryllium Copper	Between Series	-65 ░C	165 °C	SMA to PTNC	Straight	Plug to Jack	Stainless Steel	Gold	50 Ohms	15 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To PTNC Jack, Female Socket 50 Ohms
