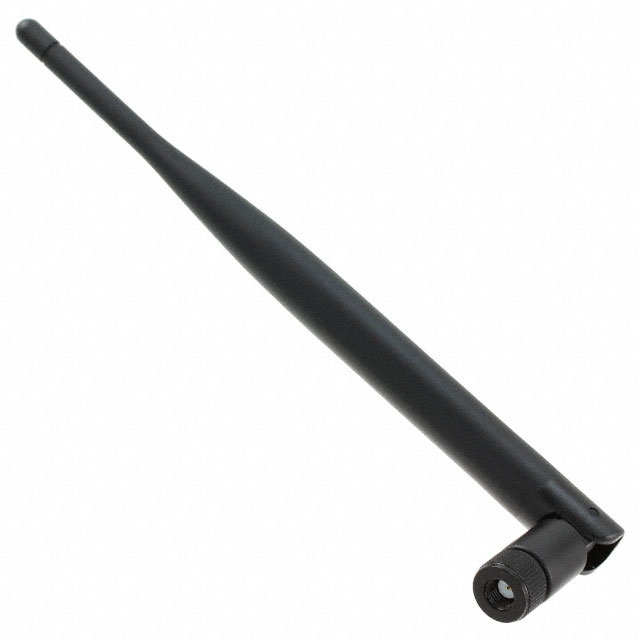

AN868-915A-10HRA

Active

Multi-Tech Systems Inc.

RF ANT 868/915MHZ WHIP TILT 8"

Search across all available documentation for this part.

Active

Multi-Tech Systems Inc.

RF ANT 868/915MHZ WHIP TILT 8"

Technical Specifications

Parameters and characteristics commom to parts in this series

RF ANT 868/915MHZ WHIP TILT 8"

Part	Gain	Applications	RF Family/Standard	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Antenna Type	Number of Bands	Termination	Frequency (Center/Band)	Frequency Range [Min]	Frequency Range [Max]	Frequency Group [Max]	Frequency Group [Min]	Height (Max)	Height (Max) [Max] [z]	Ingress Protection
Multi-Tech Systems Inc. AN868-915A-10HRA	3 dBi	ISM, LoRa	General ISM	Connector Mount	203.2 mm	8 "	Tilt, Whip	2	RP-SMA Female	868 MHz, 915 MHz	868 MHz	915 MHz	1 GHz	300 MHz
Multi-Tech Systems Inc. AN868-915A-1HRA	3 dBi	ISM, LoRa	General ISM	Connector Mount	203.2 mm	8 "	Tilt, Whip	2	RP-SMA Male	868 MHz, 915 MHz	868 MHz	915 MHz	1 GHz	300 MHz
Multi-Tech Systems Inc. AN868-915A-50HRA	3 dBi	ISM, LoRa	General ISM	Connector Mount	203.2 mm	8 "	Tilt, Whip	2	RP-SMA Male	868 MHz, 915 MHz	868 MHz	915 MHz	1 GHz	300 MHz
Multi-Tech Systems Inc. AN868-915A-5-IP67	4.5 dBi	LoRa	General ISM												388.62 mm	15.3 in	IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA ISM, LoRa Whip, Tilt RP-SMA Female Connector Mount
