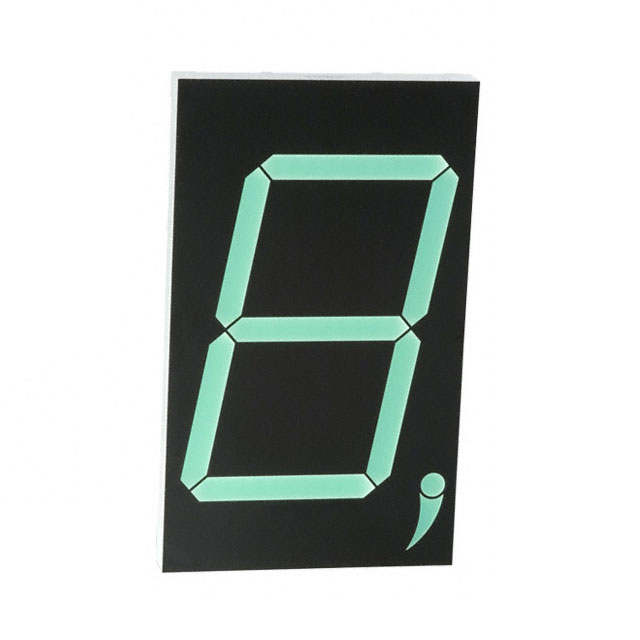

LTS-50801G

Active

Diodes Inc

DISPLAY 7-SEG 5" SGL GREEN 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LTS-50801G

Active

Diodes Inc

DISPLAY 7-SEG 5" SGL GREEN 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTS-50801G

Color	Green
Common Pin	Common Anode
Current - Test	30 mA
Digit/Alpha Size [custom]	127 mm
Digit/Alpha Size [custom]	5 in
Display Type	7-Segment
Millicandela Rating	60 mcd
Number of Characters [custom]	1
Package / Case	10-DIP
Package / Case [x]	5.197 in
Package / Case [y]	132 mm
Power Dissipation (Max) [Max]	1.2 W
Size / Dimension [x]	7.087 "
Size / Dimension [x]	180 mm
Size / Dimension [y]	4.252 in
Size / Dimension [y]	108 mm
Size / Dimension [z]	16 mm
Size / Dimension [z]	0.63 in
Voltage - Forward (Vf) (Typ)	21 V
Wavelength - Peak	565 nm

LTS-50801 Series

Part	Digit/Alpha Size [custom]	Digit/Alpha Size [custom]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Peak	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Color	Current - Test	Common Pin	Package / Case	Package / Case [x]	Package / Case [y]	Number of Characters [custom]	Display Type
Diodes Inc LTS-50801G	127 mm	5 in	16 mm	0.63 in	7.087 "	4.252 in	180 mm	108 mm	565 nm	60 mcd	21 V	1.2 W	Green	30 mA	Common Anode	10-DIP	5.197 in	132 mm	1	7-Segment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LTS-50801 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 21V 30mA 7.087" H x 4.252" W x 0.630" D (180.00mm x 108.00mm x 16.00mm) 10-DIP (5.197", 132.00mm)
