134-1019-451

Active

Cinch Connectivity Solutions Johnson

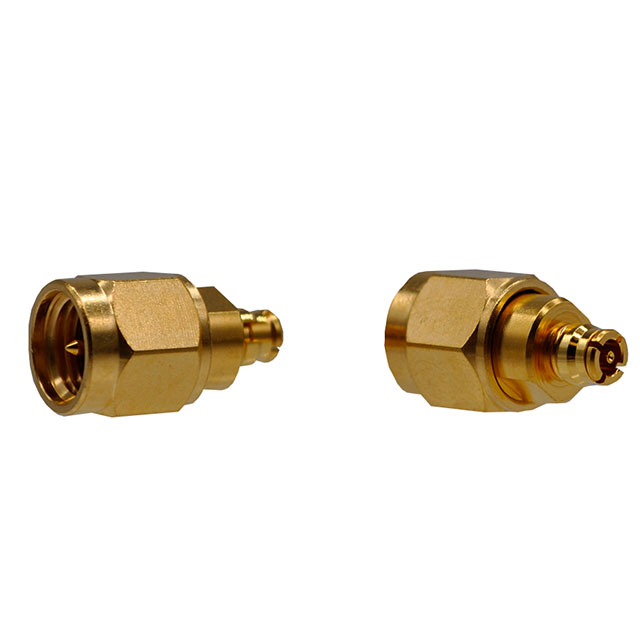

ADAPTER SMA PLUG TO SMP JACK

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

ADAPTER SMA PLUG TO SMP JACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	134-1019-451	134-1019 Series

Adapter Series	SMA to SMP	SMA to SMP
Adapter Type	Plug to Jack	Plug to Jack, Jack to Jack, Plug to Plug
Body Finish	Gold	Gold
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	-	Female to Female, Male to Male
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin	SMA Plug, Male Pin, Female Socket, SMA Jack
Convert To (Adapter End)	Female Socket, SMP Jack	Female Socket, SMP Jack, SMC Plug, Male Pin
Fastening Type	Threaded, Snap-On	Threaded, Snap-On
Frequency - Max [Max]	26.5 GHz	26.5 GHz
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Style	Straight	Straight

ADAPTER SMA PLUG TO SMP JACK

Part	Frequency - Max [Max]	Center Contact Plating	Mounting Type	Convert From (Adapter End)	Center Contact Material	Adapter Series	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Convert To (Adapter End)	Style	Conversion Type	Adapter Type	Impedance	Body Finish	Center Gender
Cinch Connectivity Solutions Johnson 134-1019-451	26.5 GHz	Gold	Free Hanging (In-Line)	SMA Plug, Male Pin	Beryllium Copper	SMA to SMP	-65 ░C	165 °C	Snap-On, Threaded	Female Socket, SMP Jack	Straight	Between Series	Plug to Jack	50 Ohms	Gold
Cinch Connectivity Solutions Johnson 134-1019-471	26.5 GHz	Gold	Free Hanging (In-Line)	Female Socket, SMA Jack	Beryllium Copper	SMA to SMP	-65 ░C	165 °C	Snap-On, Threaded	Male Pin, SMC Plug	Straight	Between Series	Plug to Jack	50 Ohms	Gold
Cinch Connectivity Solutions Johnson 134-1019-461	26.5 GHz	Gold	Free Hanging (In-Line)	Female Socket, SMA Jack	Beryllium Copper	SMA to SMP	-65 ░C	165 °C	Snap-On, Threaded	Female Socket, SMP Jack	Straight	Between Series	Jack to Jack	50 Ohms	Gold	Female to Female
Cinch Connectivity Solutions Johnson 134-1019-441	26.5 GHz	Gold	Free Hanging (In-Line)	SMA Plug, Male Pin	Beryllium Copper	SMA to SMP	-65 ░C	165 °C	Snap-On, Threaded		Straight	Between Series	Plug to Plug	50 Ohms	Gold	Male to Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMP Jack, Female Socket 50 Ohms
