346-098-559-807

Active

EDAC Inc.

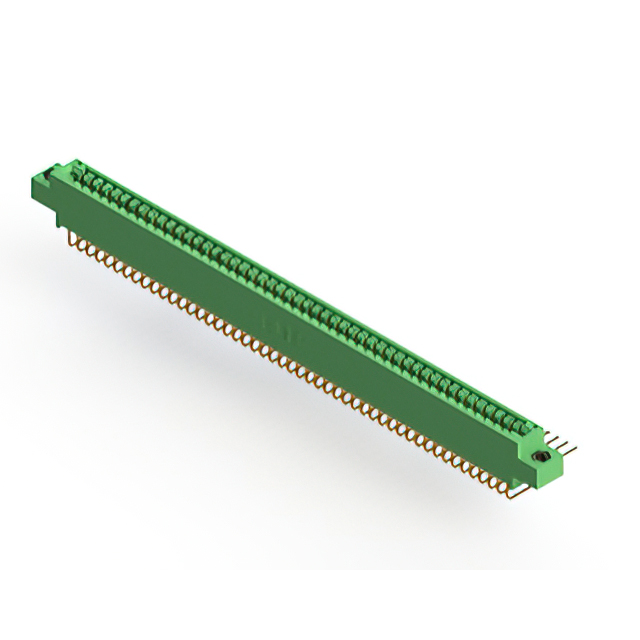

CARD EDGE CONNECTOR, 98 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.125 INCH PITCH, SOLDER TERMINAL, M3X0.5, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

346-098-559-807

Active

EDAC Inc.

CARD EDGE CONNECTOR, 98 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.125 INCH PITCH, SOLDER TERMINAL, M3X0.5, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-098-559-807

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	98
Number of Positions/Bay/Row [custom]	49
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Wire Wrap, Solder
Termination Rows	2

346-098 Series

...

Part	Card Type	Read Out	Material - Insulation	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Termination Rows	Gender	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Termination	Contact Type	Color	Number of Rows	Number of Positions	Features
EDAC Inc. 346-098-559-202	Non Specified - Dual Edge	Dual	Polyester Thermoplastic	0.125 in	3.18 mm	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	2	Female	49	10 Áin	0.25 Ám	Gold	Copper Alloy	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Solder Wire Wrap	Cantilever	Green	2	98
EDAC Inc. 346-098-558-808	Non Specified - Dual Edge	Dual	Polyester Thermoplastic	0.125 in	3.18 mm	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	2	Female	49	10 Áin	0.25 Ám	Gold	Copper Alloy			4-40 Threaded Insert Top Mount Opening	Solder Wire Wrap	Cantilever	Green	2	98
EDAC Inc. 346-098-540-878	Non Specified - Dual Edge	Dual	Polyester Thermoplastic	0.125 in	3.18 mm	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	2	Female	49	10 Áin	0.25 Ám	Gold	Copper Alloy			4-40 Threaded Insert Top Mount Opening	Wire Wrap	Cantilever	Green	2	98	Card Guides
EDAC Inc. 346-098-555-208	Non Specified - Dual Edge	Dual	Polyester Thermoplastic	0.125 in	3.18 mm	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	2	Female	49	10 Áin	0.25 Ám	Gold	Copper Alloy			4-40 Flush Mount Threaded Insert Top Opening	Solder Eyelet(s)	Cantilever	Green	2	98	Card Extender
EDAC Inc. 346-098-500-803	Non Specified - Dual Edge	Dual	Polyester Thermoplastic	0.125 in	3.18 mm	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	2	Female	49	10 Áin	0.25 Ám	Gold	Copper Alloy	2.95 mm	0.116 in	Floating Bobbin Top Mount Opening	Solder Eyelet(s)	Cantilever	Green	2	98
EDAC Inc. 346-098-559-204	Non Specified - Dual Edge	Dual	Polyester Thermoplastic	0.125 in	3.18 mm	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	2	Female	49	10 Áin	0.25 Ám	Gold	Copper Alloy	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Solder Wire Wrap	Cantilever	Green	2	98
EDAC Inc. 346-098-522-258	Non Specified - Dual Edge	Dual	Polyester Thermoplastic	0.125 in	3.18 mm	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	2	Female	49	10 Áin	0.25 Ám	Gold	Copper Alloy			4-40 Flush Mount Threaded Insert Top Opening	Solder	Cantilever	Green	2	98	Card Guides
EDAC Inc. 346-098-559-807	Non Specified - Dual Edge	Dual	Polyester Thermoplastic	0.125 in	3.18 mm	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	2	Female	49	10 Áin	0.25 Ám	Gold	Copper Alloy			M3 Threaded Insert Top Mount Opening	Solder Wire Wrap	Cantilever	Green	2	98
EDAC Inc. 346-098-526-808	Non Specified - Dual Edge	Dual	Polyester Thermoplastic	0.125 in	3.18 mm	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	2	Female	49	10 Áin	0.25 Ám	Gold	Copper Alloy			4-40 Threaded Insert Top Mount Opening	Solder	Cantilever	Green	2	98
EDAC Inc. 346-098-521-808	Non Specified - Dual Edge	Dual	Polyester Thermoplastic	0.125 in	3.18 mm	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	2	Female	49	10 Áin	0.25 Ám	Gold	Copper Alloy			4-40 Threaded Insert Top Mount Opening	Solder	Cantilever	Green	2	98

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 19.19
Newark	Each	1	$ 20.09
		100	$ 14.46
		250	$ 13.05
		500	$ 11.33
		1000	$ 9.09

Description

General part information

346-098 Series

98 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
