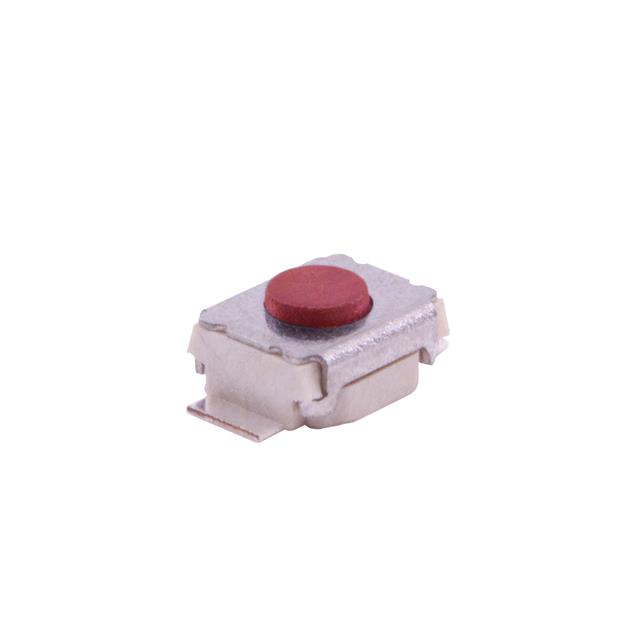

TL1017AAAF260QG

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Contact Rating @ Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Switch Travel	Actuator Orientation	Circuit	Mounting Type	Switch Function	Actuator Type	Operating Force	Illumination	Actuator Height off PCB, Vertical [z]	Mechanical Life
E-Switch TL1017ABBF260QG	Gull Wing	0.05 A 12 VDC	-20 C	70 °C	0.15 mm	Top Actuated	SPST-NO	Surface Mount	Off-Mom	Standard	260 gf
E-Switch TL1017ABAF260QG	Gull Wing	0.05 A 12 VDC	-20 C	70 °C	0.15 mm	Top Actuated	SPST-NO	Surface Mount	Off-Mom	Standard	260 gf
E-Switch TL1017AAAF260QG	Gull Wing	0.05 A 12 VDC	-20 C	70 °C	0.15 mm	Top Actuated	SPST-NO	Surface Mount	Off-Mom	Standard	260 gf
E-Switch TL1017ABAF160QG	Gull Wing	0.05 A 12 VDC	-20 C	70 °C	0.15 mm	Top Actuated	SPST-NO	Surface Mount	Off-Mom	Standard
E-Switch TL1017AABF260QG	Gull Wing	0.05 A 12 VDC	-20 C	70 °C	0.15 mm	Top Actuated	SPST-NO	Surface Mount	Off-Mom	Standard	260 gf
E-Switch TL1017AAAF160QG	Gull Wing	0.05 A 12 VDC	-25 °C	70 °C	0.15 mm	Top Actuated	SPST-NO	Surface Mount	Off-Mom	Standard		Non-Illuminated	1.5 mm	200000 Cycles
E-Switch TL1017AABF160QG	Gull Wing	0.05 A 12 VDC	-20 C	70 °C	0.15 mm	Top Actuated	SPST-NO	Surface Mount	Off-Mom	Standard
E-Switch TL1017ABBF160QG	Gull Wing	0.05 A 12 VDC	-20 C	70 °C	0.15 mm	Top Actuated	SPST-NO	Surface Mount	Off-Mom	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
