5227079-6

Active

TE Connectivity Linx

CONN BNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

TE Connectivity Linx

CONN BNC PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

CONN BNC PLUG STR 50 OHM CRIMP

Part	Shield Termination	Center Contact Material	Center Contact Plating	Number of Ports	Voltage Rating	Cable Group	Includes	Impedance	Mating Cycles	Contact Termination	Frequency - Max [Max]	Body Material	Body Finish	Fastening Type	Connector Type	Mounting Type	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss	Housing Color
TE Connectivity Linx 5227079-6	Crimp	Brass	Gold	1	500 V	223, 55A, 55B, RG-55	1 Connector, 1 Contact, 1 Ferrule	50 Ohms	500	Crimp	4 GHz	Brass	Nickel	Bayonet Lock	Male Pin, Plug	Free Hanging (In-Line)	BNC	85 °C	-55 °C	0.2 dB	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 6.71

General part information

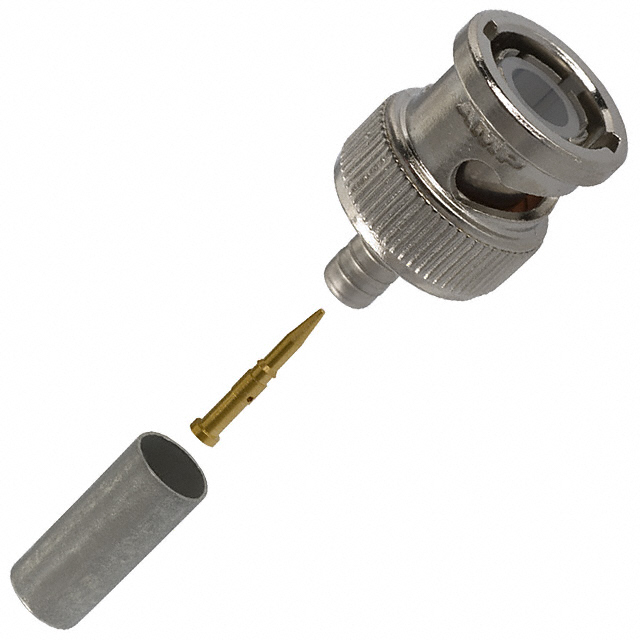

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
