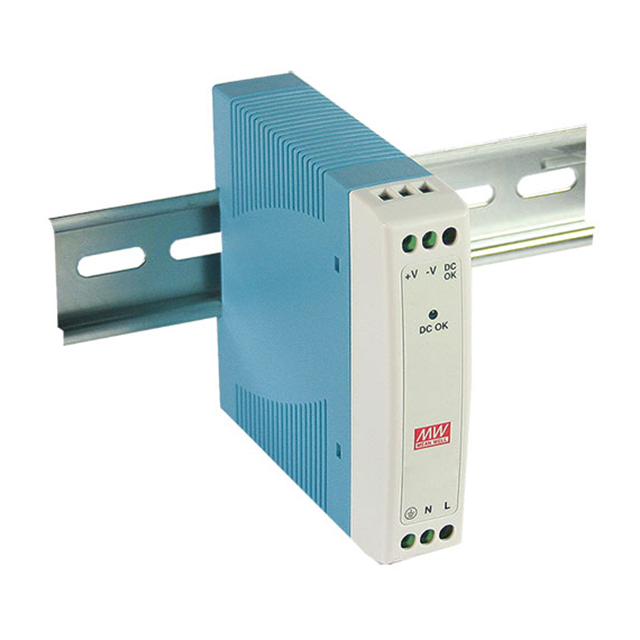

MDR-10-24

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 24V 10W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 24V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Approval Agency	DC Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Output 1	Efficiency	Input Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	DC Voltage - Input (Max) [Max]	Applications	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]
MEAN WELL USA Inc. MDR-10-12	Universal Input	-20 °C	70 °C	840 mA	3000 V	CB CE cURus TUV	120 V	10 W	12 V	81 %	AC or DC	90 mm	3.54 "	100 mm	0.89 in	22.5 mm	3.94 in	370 V	Industrial ITE (Commercial)	1	85 VAC	264 VAC
MEAN WELL USA Inc. MDR-10-24	Universal Input	-20 °C	70 °C	420 mA	3000 V	CB CE cURus TUV	120 V	10 W	24 V	84 %	AC or DC	90 mm	3.54 "	100 mm	0.89 in	22.5 mm	3.94 in	370 V	Industrial ITE (Commercial)	1	85 VAC	264 VAC
MEAN WELL USA Inc. MDR-10-5	Universal Input	-20 °C	70 °C	2 A	3000 V	CB CE cURus TUV	120 V	10 W	5 V	77 %	AC or DC	90 mm	3.54 "	100 mm	0.89 in	22.5 mm	3.94 in	370 V	Industrial ITE (Commercial)	1	85 VAC	264 VAC
MEAN WELL USA Inc. MDR-10-15	Universal Input	-20 °C	70 °C	670 mA	3000 V	CB CE cURus TUV	120 V	10 W	15 V	81 %	AC or DC	90 mm	3.54 "	100 mm	0.89 in	22.5 mm	3.94 in	370 V	Industrial ITE (Commercial)	1	85 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 10W
