100669-1
ActiveTE Connectivity AMP Connectors

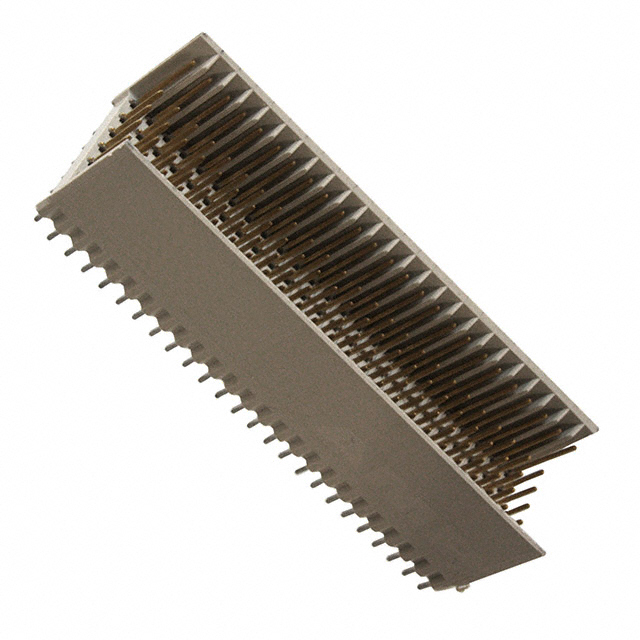

CONN HEADER 175POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
100669-1
ActiveTE Connectivity AMP Connectors
CONN HEADER 175POS 2MM PRESS-FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 100669-1 | 100669 Series |
|---|---|---|
| Connector Style | B 25 | B 25 |
| Connector Type | Header, Male Pins | Header, Male Pins |
| Connector Usage | Backplane | Backplane |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Current Rating (Amps) | 1.5 A | 1.5 A |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 175 (125 + 50 Ground) | 175 (125 + 50 Ground) |
| Number of Positions Loaded | All | All |
| Number of Rows | 2, 5 | 2 - 5 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.079 in | 0.079 in |
| Pitch [x] | 2 mm | 2 mm |
| Termination | Press-Fit | Press-Fit |
| Voltage Rating | 500 VAC | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
100669 Series
CONN HEADER 175POS 2MM PRESS-FIT
| Part | Mounting Type | Connector Style | Contact Finish | Number of Rows | Number of Positions | Number of Positions Loaded | Pitch [x] | Pitch [x] | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Termination | Connector Usage | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-100669-0 | Through Hole | B 25 | Gold | 2, 5 | 175 (125 + 50 Ground) | All | 0.079 in | 2 mm | Header, Male Pins | -55 °C | 125 °C | 0.76 Ám | 30 Áin | Press-Fit | Backplane | 1.5 A | 500 VAC |
TE Connectivity AMP Connectors 100669-1 | Through Hole | B 25 | Gold | 2, 5 | 175 (125 + 50 Ground) | All | 0.079 in | 2 mm | Header, Male Pins | -55 °C | 125 °C | 0.76 Ám | 30 Áin | Press-Fit | Backplane | 1.5 A | 500 VAC |
Description
General part information
100669 Series
175 (125 + 50 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
Documents
Technical documentation and resources
No documents available
