PM75-470K-RC

Active

Bourns Inc.

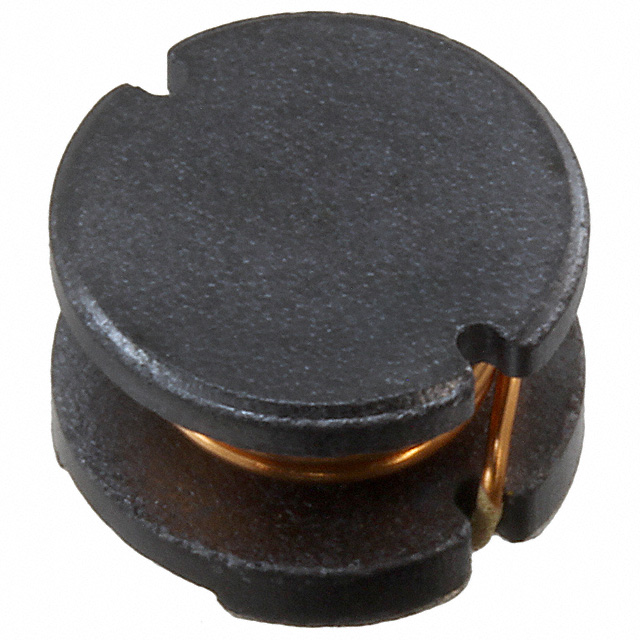

FIXED IND 47UH 1A 200 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM75-470K-RC

Active

Bourns Inc.

FIXED IND 47UH 1A 200 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM75-470K-RC

Current - Saturation (Isat)	1.6 A
Current Rating (Amps)	1 A
DC Resistance (DCR)	200 mOhm
Frequency - Self Resonant	9 MHz
Height - Seated (Max) [Max] [z]	5.3 mm
Height - Seated (Max) [Max] [z]	0.209 in
Inductance	47 µH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	2.52 MHz, 15
Shielding	Unshielded
Size / Dimension [x]	7.8 mm
Size / Dimension [x]	0.307 in
Size / Dimension [y]	7.8 mm
Size / Dimension [y]	0.307 in
Tolerance	10 %
Type	Wirewound, Drum Core

PM75 Series

Part	Tolerance	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core	DC Resistance (DCR) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Inductance	Current Rating (Amps)	Shielding	Package / Case	Frequency - Self Resonant	Type	DC Resistance (DCR)	Current - Saturation (Isat)	Q @ Freq	Size / Dimension [diameter]	Size / Dimension [diameter]
Bourns Inc. PM75-330K	10 %	2.52 MHz	5.3 mm	0.209 in	Ferrite	130 mOhm	7.8 mm	0.307 in	7.8 mm	0.307 in	100 °C	-30 ░C	Surface Mount	33 µH	1.2 A	Unshielded	Nonstandard	15 MHz	Drum Core Wirewound
Bourns Inc. PM75-470K-RC	10 %		5.3 mm	0.209 in	Ferrite		7.8 mm	0.307 in	7.8 mm	0.307 in	125 °C	-40 °C	Surface Mount	47 µH	1 A	Unshielded	Nonstandard	9 MHz	Drum Core Wirewound	200 mOhm	1.6 A	2.52 MHz 15
Bourns Inc. PM75-820K-RC	10 %		5.3 mm	0.209 in	Ferrite		7.8 mm	0.307 in	7.8 mm	0.307 in	125 °C	-40 °C	Surface Mount	82 µH	780 mA	Unshielded	Nonstandard	7 MHz	Drum Core Wirewound		1.2 A	2.52 MHz 12
Bourns Inc. PM75-221K	10 %		5.3 mm	0.209 in	Ferrite	960 mOhm	7.8 mm	0.307 in	7.8 mm	0.307 in	100 °C	-30 ░C	Surface Mount	220 µH	490 mA	Unshielded	Nonstandard	5 MHz	Drum Core Wirewound
Bourns Inc. PM75-101K-RC	10 %		5.3 mm	0.209 in	Ferrite	450 mOhm					125 °C	-40 °C	Surface Mount	100 µH	0.72 A	Unshielded	Nonstandard	7 MHz	Drum Core Wirewound		1.1 A	12 796 kHz	7.8 mm	0.307 in
Bourns Inc. PM75-151K	10 %		5.3 mm	0.209 in	Ferrite	640 mOhm	7.8 mm	0.307 in	7.8 mm	0.307 in	100 °C	-30 ░C	Surface Mount	150 µH	580 mA	Unshielded	Nonstandard	6 MHz	Drum Core Wirewound
Bourns Inc. PM75-390K	10 %	2.52 MHz	5.3 mm	0.209 in	Ferrite	160 mOhm	7.8 mm	0.307 in	7.8 mm	0.307 in	100 °C	-30 ░C	Surface Mount	39 µH	1.1 A	Unshielded	Nonstandard	14 MHz	Drum Core Wirewound

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.69
		10	$ 0.57
		100	$ 0.47
	Digi-Reel®	1	$ 0.69
		10	$ 0.57
		100	$ 0.47
	Tape & Reel (TR)	500	$ 0.41
		1000	$ 0.38
		1500	$ 0.37
		2500	$ 0.35
		3500	$ 0.34
		5000	$ 0.33
		12500	$ 0.31

Description

General part information

PM75 Series

47 µH Unshielded Drum Core, Wirewound Inductor 1 A 200mOhm Max Nonstandard
