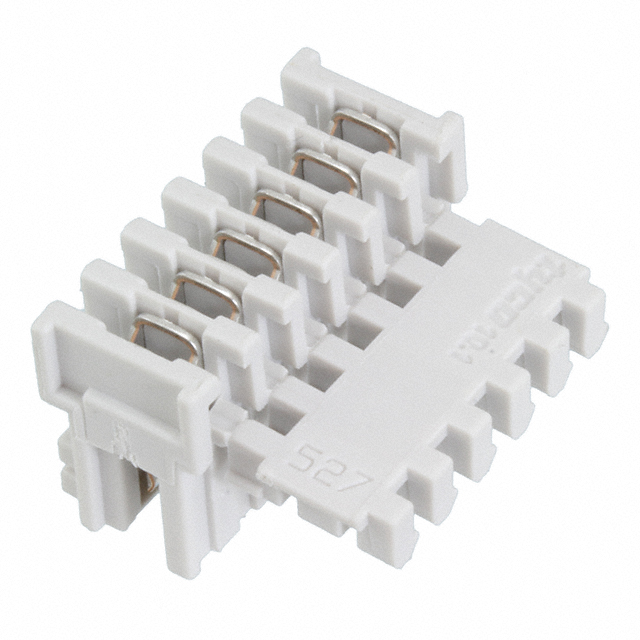

3-829868-6
TE Connectivity AMP Connectors
CONN RCPT 6POS IDC 22AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-829868-6
TE Connectivity AMP Connectors
CONN RCPT 6POS IDC 22AWG TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-829868-6 | 829868 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Gray | Gray |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Tin | Tin |
| Contact Type | Female Socket | Female Socket |
| Features | Mates to PCB | Closed End, Mates to PCB |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 - 10 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 0.098 in | 0.098 in |
| Pitch [x] | 2.5 mm | 2.5 mm |
| Wire Gauge | 22 AWG | 22 AWG |
| Wire Type | Discrete | Discrete |
829868 Series
6X10P FEDERLEI 2,5
| Part | Mounting Type | Color | Number of Rows | Cable Termination | Contact Finish | Wire Type | Connector Type | Features | Contact Type | Wire Gauge | Number of Positions | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-829868-0 | Free Hanging (In-Line) | Gray | 1 | IDC | Tin | Discrete | Receptacle | Closed End | Female Socket | 22 AWG | 10 | 0.098 in | 2.5 mm |
TE Connectivity AMP Connectors 3-829868-6 | Free Hanging (In-Line) | Gray | 1 | IDC | Tin | Discrete | Receptacle | Mates to PCB | Female Socket | 22 AWG | 6 | 0.098 in | 2.5 mm |
TE Connectivity AMP Connectors 3-829868-5 | Free Hanging (In-Line) | Gray | 1 | IDC | Tin | Discrete | Receptacle | Mates to PCB | Female Socket | 22 AWG | 0.098 in | 2.5 mm | |
TE Connectivity AMP Connectors 3-829868-8 | Free Hanging (In-Line) | Gray | 1 | IDC | Tin | Discrete | Receptacle | Mates to PCB | Female Socket | 22 AWG | 8 | 0.098 in | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.65 | |
| 10 | $ 0.54 | |||
| 25 | $ 0.50 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.37 | |||
| 2500 | $ 0.34 | |||
Description
General part information
829868 Series
6 Position Rectangular Receptacle Connector IDC Tin 22 AWG
