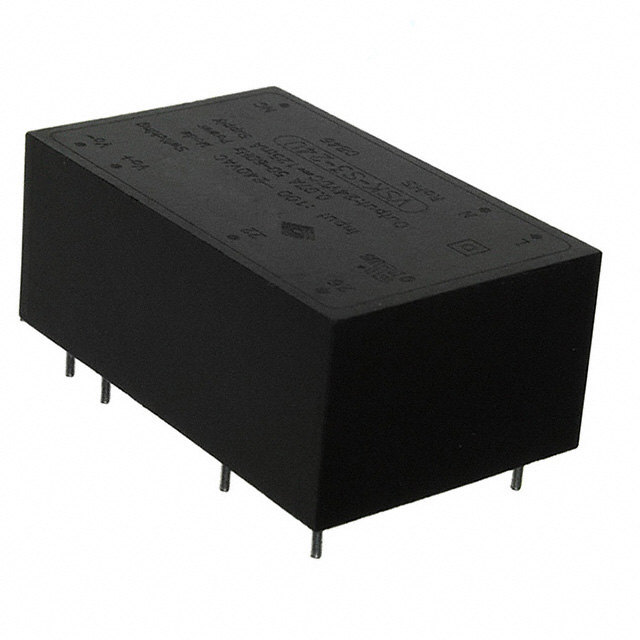

VSK-S3-9U
CUI Inc.
AC/DC CONVERTER 9V 3W
Deep-Dive with AI
Search across all available documentation for this part.
VSK-S3-9U
CUI Inc.
AC/DC CONVERTER 9V 3W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VSK-S3-9U |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | EN, CB Scheme, UL, IEC |
| Current - Output (Max) | 330 mA |
| Efficiency | 74 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 26-DIP Module, 7 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 1.46 in |
| Size / Dimension [x] | 37 mm |
| Size / Dimension [y] | 0.91 in |
| Size / Dimension [y] | 23 mm |
| Size / Dimension [z] | 15.5 mm |
| Size / Dimension [z] | 0.61 " |
| Standard Number | 55032, 61000.32, 55024, 60950.1, 61000.33 |
| Type | Enclosed |
| Voltage - Output 1 | 9 V |
| Weight | 0.056 lb |
| Weight | 25.4 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 14.23 | |
| 5 | $ 13.40 | |||
| 10 | $ 13.06 | |||
Description
General part information
VSK-S3 Series
Enclosed AC DC Converters 1 Output 9V 330mA 85 ~ 264 VAC Input
