PXPTPU12RAF05BCL010PUR

Active

BULGIN LIMITED

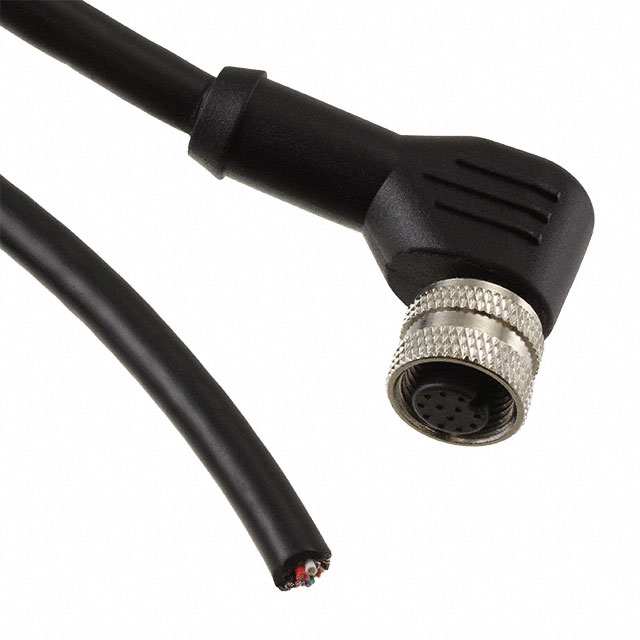

CBL 5POS PLUG RA TO WIRE 3.28'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PXPTPU12RAF05BCL010PUR

Active

BULGIN LIMITED

CBL 5POS PLUG RA TO WIRE 3.28'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXPTPU12RAF05BCL010PUR

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation	B
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

PXPTPU Series

Part	2nd Connector Orientation	2nd Connector Mounting Type	1st Connector Shell Size - Insert	1st Connector Mounting Type	2nd Connector Number of Positions Loaded	1st Connector Number of Positions	Assembly Configuration	Cable Material	Cable Type	Color	2nd Connector Type	1st Connector Number of Positions Loaded	2nd Connector Number of Positions	Ingress Protection	Usage	1st Connector Orientation	1st Connector Type	2nd Connector Shell Size - Insert	1st Connector Gender	Length [x]	Length [x]	Shielding	1st Connector Number of Positions [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Shell Material	Connector Type	Current Rating (Amps)	Number of Positions	Primary Material	Contact Finish - Mating	Termination	Mounting Type	Orientation	Insert Material	Features	Voltage Rating	Contact Material	1st Connector Orientation [custom]
BULGIN LIMITED PXPTPU12FIM08XFI100PU	X	Free Hanging (In-Line)	M12	Free Hanging (In-Line)	All	8 positions	Standard	Polyurethane (PUR)	Round	Teal	Receptacle	All	8	IP67 - Dust Tight Waterproof	Cat6a Industrial Environments	X	Receptacle	M12	Male Pins
BULGIN LIMITED PXPTPU12FIM08XFI010PU	X	Free Hanging (In-Line)	M12	Free Hanging (In-Line)	All	8 positions	Standard	Polyurethane (PUR)	Round	Teal	Receptacle	All	8	IP67 - Dust Tight Waterproof	Cat6a Industrial Environments	X	Receptacle	M12	Male Pins	1 m	3.28 ft
BULGIN LIMITED PXPTPU12RAF12ACL010PUR			M12	Free Hanging (In-Line)			Standard	Polyurethane (PUR)	Round	Black	Wire Leads	All		IP67 - Dust Tight Waterproof	Industrial Environments	A	Plug Right Angle		Female Sockets	1 m	3.28 ft	Unshielded	12
BULGIN LIMITED PXPTPU78RAM04ASTM22										Black Silver				IP67 - Dust Tight Waterproof								Unshielded		0.236 in 0.472 in	12 mm	6 mm	-25 °C	85 °C	1 µin	0.025 µm	UL94 V-0	Polyamide (PA66) Nylon 6/6 Glass Filled	Male Pins Plug	9 A	4	Plastic	Gold	Screw	Free Hanging (In-Line) Right Angle	A	Glass Filled Nylon 6/6 Polyamide (PA66)	Backshell	300 VDC	Brass
BULGIN LIMITED PXPTPU08FBF04PCL010PUR			M8	Free Hanging (In-Line)		4	Standard	Polyurethane (PUR)	Round	Black	Wire Leads	All		IP67 - Dust Tight Waterproof	Industrial Environments		Plug		Female Sockets	1 m	3.28 ft	Unshielded																							P
BULGIN LIMITED PXPTPU05RAM04ACL010PUR			M5	Free Hanging (In-Line)		4	Standard	Polyurethane (PUR)	Round	Black	Wire Leads	All		IP67 - Dust Tight Waterproof	Industrial Environments	A	Receptacle Right Angle		Male Pins	1 m	3.28 ft	Unshielded
BULGIN LIMITED PXPTPU12FBF08XRJ020PU									Round	Teal					Cat6a Industrial Environments - IP67					2 m	6.56 ft												Circular 08 pos Female to RJ45 8p8c
BULGIN LIMITED PXPTPU08RAM05BCL010PUR			M8	Free Hanging (In-Line)		5	Standard	Polyurethane (PUR)	Round	Black	Wire Leads	All		IP67 - Dust Tight Waterproof	Industrial Environments	B	Receptacle Right Angle		Male Pins	1 m	3.28 ft	Unshielded
BULGIN LIMITED PXPTPU12RAF05BCL010PUR			M12	Free Hanging (In-Line)		5	Standard	Polyurethane (PUR)	Round	Black	Wire Leads	All		IP67 - Dust Tight Waterproof	Industrial Environments	B	Plug Right Angle		Female Sockets	1 m	3.28 ft	Unshielded
BULGIN LIMITED PXPTPU12FBF04TCL010PUR			M12	Free Hanging (In-Line)		4	Standard	Polyurethane (PUR)	Round	Black	Wire Leads	All		IP67 - Dust Tight Waterproof	Industrial Environments	T	Plug		Female Sockets	1 m	3.28 ft	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.96
		10	$ 23.77
		25	$ 22.28
		50	$ 21.22
		100	$ 20.20
		250	$ 18.94
		500	$ 18.06

Description

General part information

PXPTPU Series

Circular Cable Assembly Unshielded 3.28' (1.00m)

Documents

Technical documentation and resources
