450-10-208-00-006000

Active

Mill-Max Manufacturing Corp.

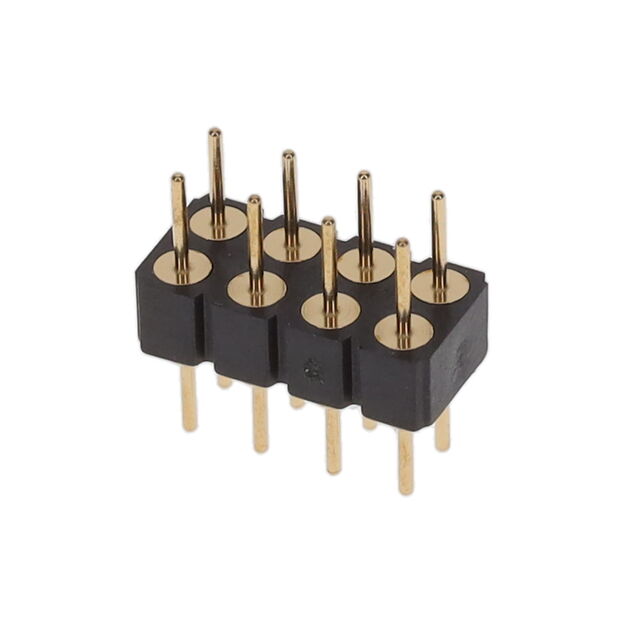

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

450-10-208-00-006000

Active

Mill-Max Manufacturing Corp.

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	450-10-208-00-006000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	3.61 mm
Contact Length - Mating	0.142 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	10 mm
Overall Contact Length	0.394 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

450-10 Series

Part	Contact Length - Mating	Contact Length - Mating	Contact Shape	Insulation Color	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Connector Type	Number of Positions	Contact Material	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Fastening Type	Overall Contact Length	Overall Contact Length	Termination	Mounting Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Insulation Material	Contact Length - Post [x]
Mill-Max Manufacturing Corp. 450-10-220-00-001000	4.22 mm	0.166 in	Circular	Black	Gold	0.1 in	2.54 mm	2	0.156 in	3.96 mm	Header	20	Brass Alloy	Male Pin	10 çin	0.25 çm	10 çin	0.25 çm	Gold	Push-Pull	0.477 in	12.12 mm	Solder	Through Hole	All	2.54 mm	0.1 in	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)
Mill-Max Manufacturing Corp. 450-10-234-00-006000	3.61 mm	0.142 in	Circular	Black	Gold	0.1 in	2.54 mm	2		2.79 mm	Header	34	Brass Alloy	Male Pin	10 çin	0.25 çm	10 çin	0.25 çm	Gold	Push-Pull	0.394 in	10 mm	Solder	Through Hole	All	2.54 mm	0.1 in	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)	0.11 in
Mill-Max Manufacturing Corp. 450-10-214-00-001000	4.22 mm	0.166 in	Circular	Black	Gold	0.1 in	2.54 mm	2	0.156 in	3.96 mm	Header	14	Brass Alloy	Male Pin	10 çin	0.25 çm	10 çin	0.25 çm	Gold	Push-Pull	0.477 in	12.12 mm	Solder	Through Hole	All	2.54 mm	0.1 in	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)
Mill-Max Manufacturing Corp. 450-10-242-00-106000	3.61 mm	0.142 in	Circular	Black	Gold	0.1 in	2.54 mm	2			Header	42	Brass Alloy	Male Pin	10 çin	0.25 çm	10 çin	0.25 çm	Gold	Push-Pull			Solder	Surface Mount	All	2.54 mm	0.1 in	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)
Mill-Max Manufacturing Corp. 450-10-238-00-001000	4.22 mm	0.166 in	Circular	Black	Gold	0.1 in	2.54 mm	2	0.156 in	3.96 mm	Header	38	Brass Alloy	Male Pin	10 çin	0.25 çm	10 çin	0.25 çm	Gold	Push-Pull	0.477 in	12.12 mm	Solder	Through Hole	All	2.54 mm	0.1 in	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)
Mill-Max Manufacturing Corp. 450-10-256-00-106000	3.61 mm	0.142 in	Circular	Black	Gold	0.1 in	2.54 mm	2			Header	56	Brass Alloy	Male Pin	10 çin	0.25 çm	10 çin	0.25 çm	Gold	Push-Pull			Solder	Surface Mount	All	2.54 mm	0.1 in	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)
Mill-Max Manufacturing Corp. 450-10-208-00-006000	3.61 mm	0.142 in	Circular	Black	Gold	0.1 in	2.54 mm	2		2.79 mm	Header	8	Brass Alloy	Male Pin	10 çin	0.25 çm	10 çin	0.25 çm	Gold	Push-Pull	0.394 in	10 mm	Solder	Through Hole	All	2.54 mm	0.1 in	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)	0.11 in
Mill-Max Manufacturing Corp. 450-10-206-00-106000	3.61 mm	0.142 in	Circular	Black	Gold	0.1 in	2.54 mm	2			Header	6	Brass Alloy	Male Pin	10 çin	0.25 çm	10 çin	0.25 çm	Gold	Push-Pull			Solder	Surface Mount	All	2.54 mm	0.1 in	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)
Mill-Max Manufacturing Corp. 450-10-258-00-006000	3.61 mm	0.142 in	Circular	Black	Gold	0.1 in	2.54 mm	2		2.79 mm	Header	58	Brass Alloy	Male Pin	10 çin	0.25 çm	10 çin	0.25 çm	Gold	Push-Pull	0.394 in	10 mm	Solder	Through Hole	All	2.54 mm	0.1 in	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)	0.11 in
Mill-Max Manufacturing Corp. 450-10-220-00-006000	3.61 mm	0.142 in	Circular	Black	Gold	0.1 in	2.54 mm	2		2.79 mm	Header	20	Brass Alloy	Male Pin	10 çin	0.25 çm	10 çin	0.25 çm	Gold	Push-Pull	0.394 in	10 mm	Solder	Through Hole	All	2.54 mm	0.1 in	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)	0.11 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 15.97
		50	$ 12.11
		100	$ 11.53
		500	$ 10.30
		1000	$ 9.81

Description

General part information

450-10 Series

Connector Header Through Hole 8 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
