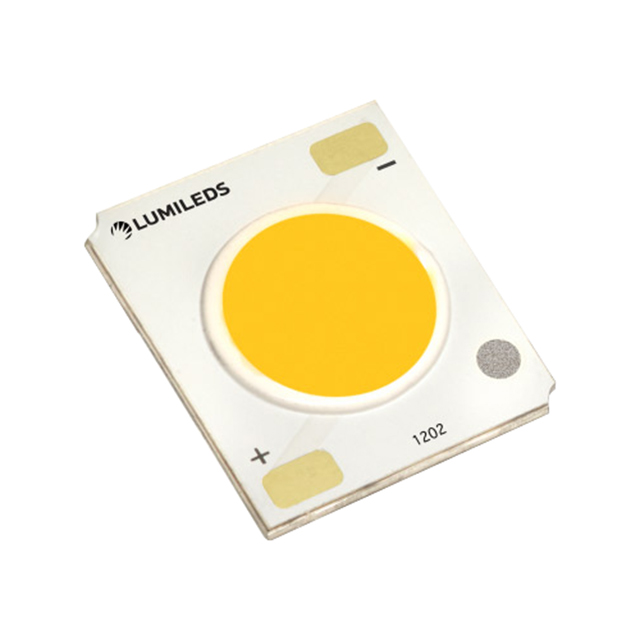

L2C3-3090109E06C00

Obsolete

Lumileds

LED COB LUXEON WHT RECT 3000K

Search across all available documentation for this part.

Obsolete

Lumileds

LED COB LUXEON WHT RECT 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	L2C3-3090109E06C00

Color	White, Warm
Configuration	Rectangle
CRI (Color Rendering Index)	90
Current - Max [Max]	400 mA
Current - Test	250 mA
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	6.5 mm
Lumens/Watt @ Current - Test	74 lm/W
Luminous Flux @ Current/Temperature	650 lm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	35 V

LED COB LUXEON WHT RECT 3000K

Part	Viewing Angle	CRI (Color Rendering Index)	Type	Lens Type	Height [z]	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Configuration	Temperature - Test	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Color	Current - Test
Lumileds L2C3-3090109E06C00	115 °	90	Chip On Board (COB)	Flat	1.5 mm	74 lm/W	650 lm	Rectangle	85 °C	35 V	400 mA	6.5 mm	Warm, White	250 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) LUXEON CoB, CrispWhite White, Warm Rectangle
