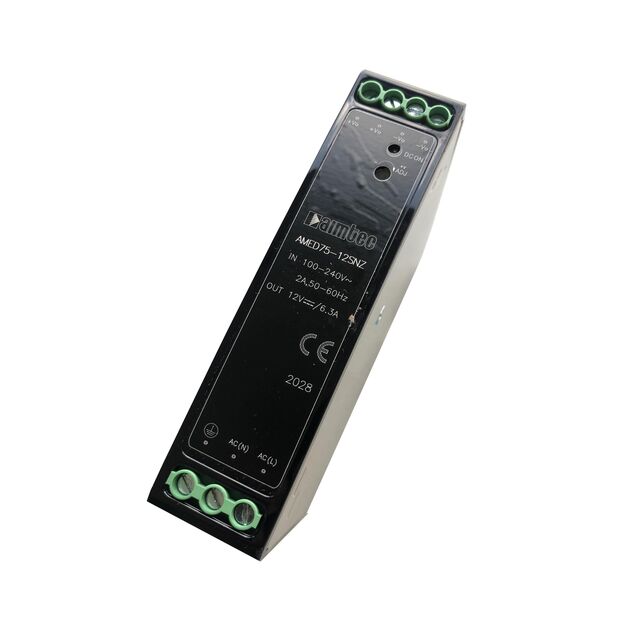

Specification	AMED75-12SNZ

AC Voltage - Input (Max)	264 VAC
AC Voltage - Input (Min)	90 VAC
Applications	Industrial, Household Appliances, ITE (Commercial)
Current - Output (Max)	6.3 A
DC Voltage - Input (Max)	264 V
DC Voltage - Input (Min)	90 V
Efficiency	86 %
Features	Universal Input
Input Type	AC or DC, DC, AC
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Power (Watts)	75 W
Size / Dimension Height	5.04 in
Size / Dimension Length	4.72 in
Size / Dimension Width	1.18 in
Standard Number	60335-1, 62368-1, 508
Voltage - Isolation	4000 Vpk
Voltage - Output 1	12 V

AMED75 Series

Part	Power (Watts)	Voltage - Output 1	Features	DC Voltage - Input (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Number of Outputs	Applications	Standard Number	Input Type	Voltage - Isolation	Efficiency	DC Voltage - Input (Min)	Current - Output (Max)	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	AC Voltage - Input (Max)	AC Voltage - Input (Min)
aimtec AMED75-12SNZ	75 W	12 V	Universal Input	264 V	70 °C	-30 °C	1	Household Appliances Industrial ITE (Commercial)	508 60335-1 62368-1	AC AC or DC DC	4000 Vpk	86 %	90 V	6.3 A	1.18 in	4.72 in	5.04 in	264 VAC	90 VAC
