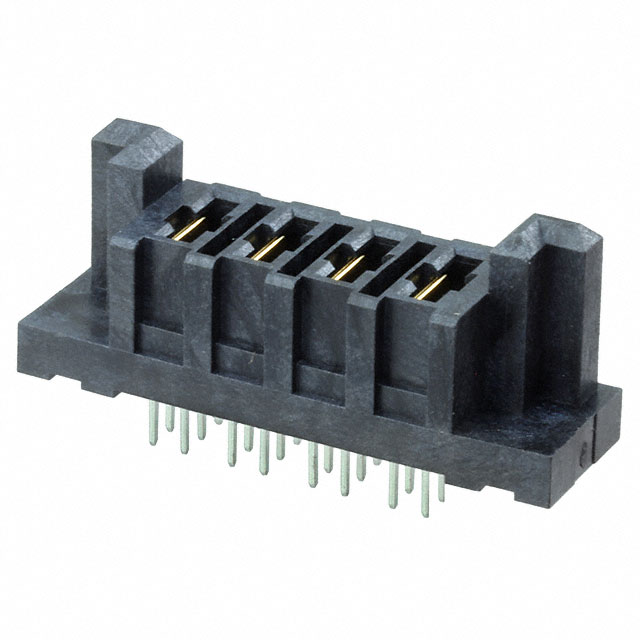

PES-04-02-L-VT
ActiveSamtec Inc.
CONN RCPT 4POS PCB SLDR
Deep-Dive with AI
Search across all available documentation for this part.
PES-04-02-L-VT
ActiveSamtec Inc.
CONN RCPT 4POS PCB SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PES-04-02-L-VT |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Blade Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 40 A |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Termination | Solder |
| Voltage Rating | 1025 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.54 | |
| 10 | $ 11.59 | |||
| 25 | $ 10.96 | |||
| 50 | $ 10.56 | |||
| 100 | $ 9.85 | |||
Description
General part information
PES-04 Series
4 Position Receptacle, Female Blade Sockets Connector Solder Through Hole
