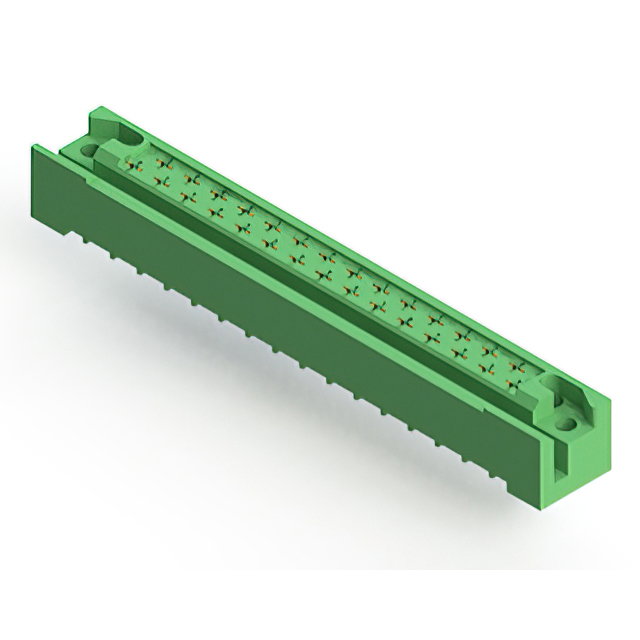

424-029-502-122
ActiveEDAC Inc.
CARD EDGE METAL TO METAL 2 PIECE CONNECTORS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
424-029-502-122
ActiveEDAC Inc.
CARD EDGE METAL TO METAL 2 PIECE CONNECTORS ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 424-029-502-122 |
|---|---|
| Card Thickness | 0.093 in |
| Card Thickness | 2.36 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 29 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Termination | Solder |
| Termination Rows | 2 |
424-029 Series
| Part | Contact Finish | Gender | Mounting Type | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Card Thickness | Card Thickness | Contact Material | Number of Positions | Color | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Number of Rows | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Female | Panel Mount Through Hole | 2 | 125 °C | -65 ░C | Solder | 0.093 in | 2.36 mm | Copper Alloy | 29 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 0.2 in | 5.08 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge |
EDAC Inc. | Gold | Female | Panel Mount Through Hole | 2 | 125 °C | -65 ░C | Solder | 0.062 in | 1.57 mm | Copper Alloy | 29 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 0.2 in | 5.08 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge |
EDAC Inc. | Gold | Female | Panel Mount Through Hole | 2 | 125 °C | -65 ░C | Wire Wrap | 0.062 in | 1.57 mm | Copper Alloy | 29 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 0.2 in | 5.08 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge |
EDAC Inc. | Gold | Female | Panel Mount Through Hole | 2 | 125 °C | -65 ░C | Solder | 0.093 in | 2.36 mm | Copper Alloy | 29 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 0.2 in | 5.08 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge |
EDAC Inc. | Gold | Female | Panel Mount Through Hole | 2 | 125 °C | -65 ░C | Wire Wrap | 0.093 in | 2.36 mm | Copper Alloy | 29 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 0.2 in | 5.08 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge |
EDAC Inc. | Gold | Female | Panel Mount Through Hole | 2 | 125 °C | -65 ░C | Solder | 0.093 in | 2.36 mm | Copper Alloy | 29 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 0.2 in | 5.08 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge |
EDAC Inc. | Gold | Female | Panel Mount Through Hole | 2 | 125 °C | -65 ░C | Solder Eyelet(s) | 0.093 in | 2.36 mm | Copper Alloy | 29 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 0.2 in | 5.08 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge |
EDAC Inc. | Gold | Female | Panel Mount Through Hole | 2 | 125 °C | -65 ░C | Solder | 0.093 in | 2.36 mm | Copper Alloy | 29 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 0.2 in | 5.08 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge |
EDAC Inc. | Gold | Female | Panel Mount Through Hole | 2 | 125 °C | -65 ░C | Solder | 0.062 in | 1.57 mm | Copper Alloy | 29 | Green | Diallyl Phthalate (DAP) | 0.2 in | 5.08 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge | ||
EDAC Inc. | Gold | Female | Panel Mount Through Hole | 2 | 125 °C | -65 ░C | Solder | 0.093 in | 2.36 mm | Copper Alloy | 29 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 0.2 in | 5.08 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
424-029 Series
29 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
