ZNBG3115Q20TC
ObsoleteDiodes Inc
IC SW 3BIAS TONE H/V 2.2V 20QSOP
Deep-Dive with AI
Search across all available documentation for this part.
ZNBG3115Q20TC
ObsoleteDiodes Inc
IC SW 3BIAS TONE H/V 2.2V 20QSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZNBG3115Q20TC |
|---|---|
| Applications | Bias Controller |
| Current - Supply | 28 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |

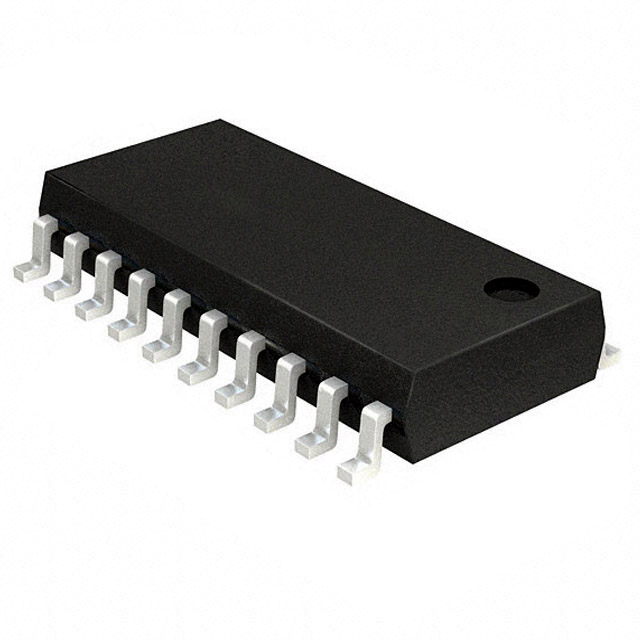

| Package / Case | 20-SSOP |
| Package / Case [custom] | 0.154 in |
| Package / Case [custom] | 3.9 mm |
| Supplier Device Package | 20-QSOP |
| Voltage - Supply [Max] | 10 V |
| Voltage - Supply [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ZNBG3115 Series
Bias Controller PMIC 20-QSOP
Documents
Technical documentation and resources
