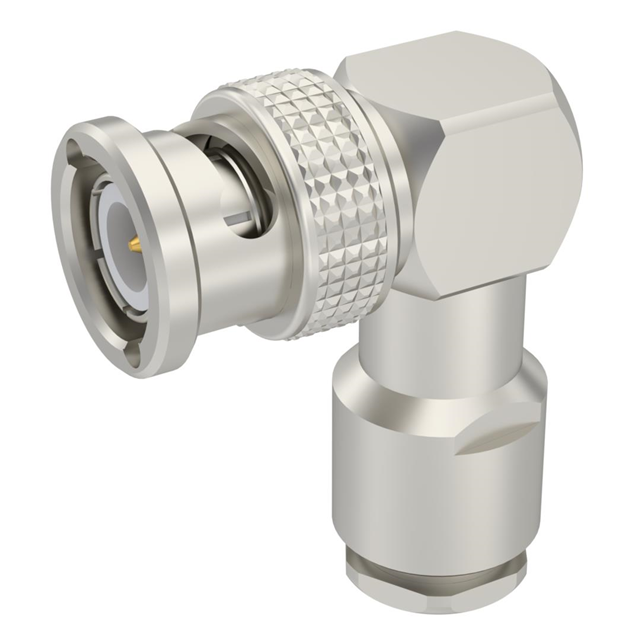

BNC M RA CL 5/50

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC M RA CL 5/50

Technical Specifications

Parameters and characteristics for this part

Specification	R141156000

Body Finish	Nickel
Body Material	Brass
Cable Group	400, 223, 141, RG-58, 142
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Cable Group	Connector Type	Body Finish	Body Material	Number of Ports	Dielectric Material	Frequency - Max [Max]	Impedance	Fastening Type	Mounting Type	Shield Termination	Housing Color	Connector Style	Contact Termination	Voltage Rating	Center Contact Material	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating
Radiall USA, Inc. R141156000	141 142 223 400 RG-58	Male Pin Plug	Nickel	Brass	1	Polytetrafluoroethylene (PTFE)	4 GHz	50 Ohms	Bayonet Lock	Free Hanging (In-Line) Right Angle	Clamp	Silver	BNC	Crimp	500 V	Beryllium Copper Brass	500	-65 ░C	165 °C	Gold
Radiall USA, Inc. R141154000W	179 316 316DS RG-174	Male Pin Plug	Nickel	Brass	1	Polytetrafluoroethylene (PTFE)	4 GHz	50 Ohms	Bayonet Lock	Free Hanging (In-Line) Right Angle	Clamp	Silver	BNC	Solder	500 V	Brass		-65 ░C	165 °C	Gold
