1217198-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 22-26AWG 0.110
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217198-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 22-26AWG 0.110
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217198-1 |
|---|---|
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Length - Overall [x] | 8.31 mm |
| Length - Overall [x] | 0.327 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 3.56 mm |
| Tab Length | 0.14 " |
| Tab Thickness | 0.016 " |
| Tab Thickness | 0.41 mm |
| Tab Width | 2.79 mm |
| Tab Width | 0.11 " |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1217198 Series
CONN QC RCPT 22-26AWG 0.110
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Type | Mounting Type | Termination | Contact Material | Insulation | Tab Width | Tab Width | Tab Length | Tab Length | Tab Thickness | Tab Thickness | Gender | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217198-1 | 22 AWG | 26 AWG | Standard | Free Hanging (In-Line) | Crimp | Brass | Non-Insulated | 2.79 mm | 0.11 " | 3.56 mm | 0.14 " | 0.016 " | 0.41 mm | Female | 8.31 mm | 0.327 in |
Description
General part information
1217198 Series

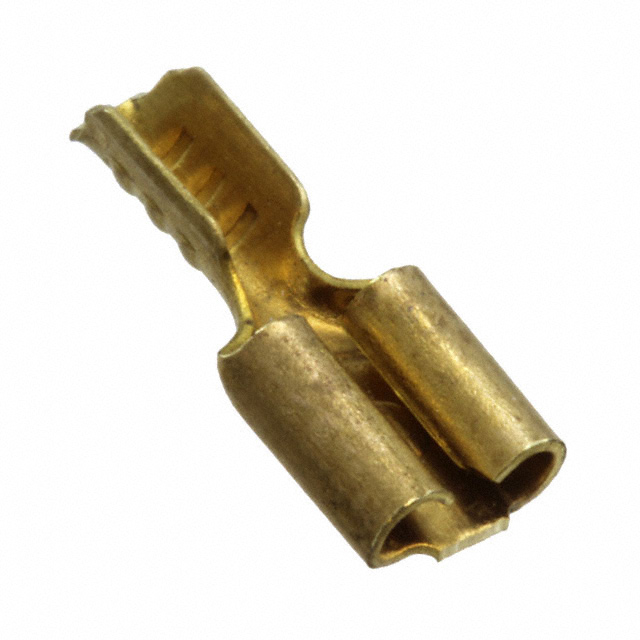

0.110" (2.79mm) Quick Connect Female 22-26 AWG Crimp Connector Non-Insulated
