Q14F1CXXR24E
ActiveAPEM

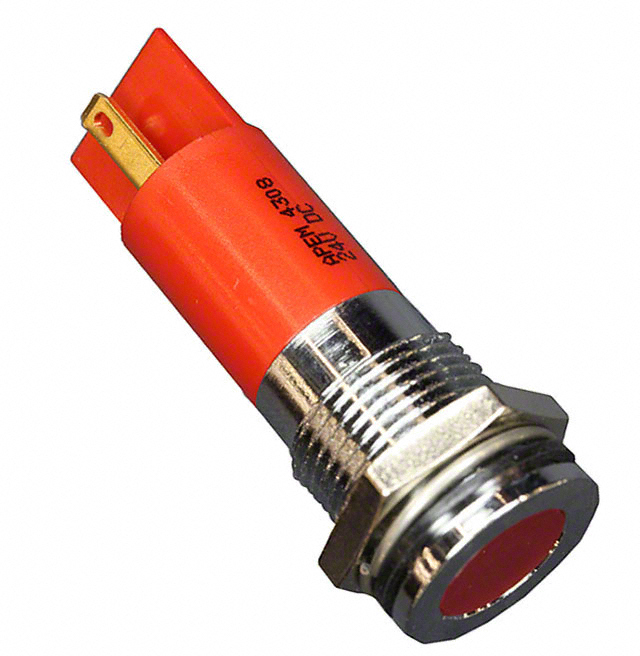

LED PANEL MOUNT INDICATOR, FLUSH BEZEL, RED, 24 VDC, 14 MM, 20 MA, 10 MCD, IP67
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q14F1CXXR24E
ActiveAPEM
LED PANEL MOUNT INDICATOR, FLUSH BEZEL, RED, 24 VDC, 14 MM, 20 MA, 10 MCD, IP67
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q14F1CXXR24E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Red |
| Lens Color | Red |
| Lens Size [diameter] | 10 mm |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd |
| Panel Cutout Dimensions | 13.97 mm |
| Panel Cutout Dimensions | 0.55 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Q14F1CXXR Series
LED Panel Indicator Red Diffused 100° 24V 20mA Quick Connect - 0.110" (2.8mm)
