YHDP24-18-14PEL024

Active

TE Connectivity Deutsch Connectors

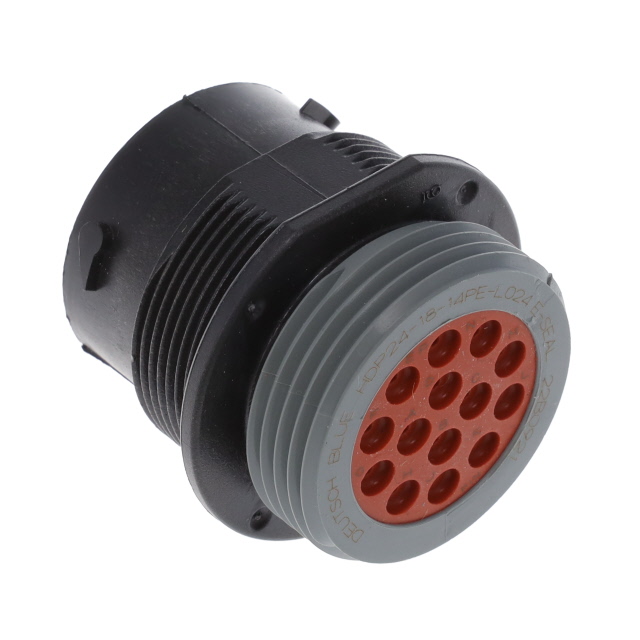

RCPT, SIZE 18, HDP, -L024

Deep-Dive with AI

Search across all available documentation for this part.

YHDP24-18-14PEL024

Active

TE Connectivity Deutsch Connectors

RCPT, SIZE 18, HDP, -L024

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.83
		10	$ 9.60
		25	$ 9.23
		50	$ 8.86
		100	$ 8.67

Description

General part information

YHDP24 Series

14 Position Circular Connector Receptacle Housing Panel Mount Threading Adapter

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YHDP24-18-14PEL024	YHDP24 Series

Connector Type	Receptacle Housing	Receptacle Housing
Contact Shape	Circular	Circular
Contact Size	16	12 - 20
Contact Size	-	6 - 13
Contact Size	-	12 (3), 8 (1), 16 (14)
Contact Type	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Threading Adapter	Threading Adapter, Adapter, Dust Cap
Housing Color	Black	Black
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetherimide (PEI)	Polyetherimide (PEI)
Material Flammability Rating	UL94 V-0	UL94 V-0, UL94 V-1
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Note	Contacts Not Included, Jam Nut Not Included	Contacts Not Included, Jam Nut Not Included
Number of Positions	14	14 - 31
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Size - Insert	18-14	24-19, 18-14
Shell Size - Insert	-	24
Shell Size - Insert	-	29
Shell Size - Insert	-	18 - 31
Shell Size - Insert	-	24
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

YHDP24 Series

RCPT, SIZE 24, HDP, -L024

Part	Housing Color	Contact Size	Connector Type	Fastening Type	Shielding	Primary Material	Insert Material	Mounting Feature	Number of Positions	Orientation	Features	Type	Shell Material	Shell Size - Insert [Min] [diameter]	Shell Size - Insert [Max] [diameter]	Ingress Protection	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Type	Note	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size - Insert	Contact Size	Contact Size
TE Connectivity Deutsch Connectors YHDP24-24-29PEL024	Black	12, 16, 20	Receptacle Housing	Bayonet Lock	Unshielded	Plastic	Polyetherimide (PEI)	Bulkhead - Front Side Nut	29	Keyed	Threading Adapter	For Male Pins	Polyamide (PA66), Nylon 6/6, Glass Filled	24	29	IP68 - Dust Tight, Waterproof	UL94 V-0	-55 °C	125 °C	Circular	Crimp	Contacts Not Included, Jam Nut Not Included
TE Connectivity Deutsch Connectors YHDP24-24-31PEL024	Black	16	Receptacle Housing	Bayonet Lock	Unshielded		Polyetherimide (PEI)	Bulkhead - Front Side Nut	31	Keyed	Adapter, Dust Cap	For Male Pins	Polyamide (PA66), Nylon 6/6, Glass Filled			IP68 - Dust Tight, Waterproof	UL94 V-1	-55 °C	125 °C	Circular	Crimp	Contacts Not Included, Jam Nut Not Included	31	24
TE Connectivity Deutsch Connectors YHDP24-24-19PEL024	Black	12, 16	Receptacle Housing	Bayonet Lock	Unshielded	Plastic	Polyetherimide (PEI)	Bulkhead - Front Side Nut	19	Keyed	Threading Adapter	For Male Pins	Polyamide (PA66), Nylon 6/6, Glass Filled			IP68 - Dust Tight, Waterproof	UL94 V-0	-55 °C	125 °C	Circular	Crimp	Contacts Not Included, Jam Nut Not Included			24-19	6, 13
TE Connectivity Deutsch Connectors YHDP24-24-18PEL024	Black		Receptacle Housing	Bayonet Lock	Unshielded	Plastic	Polyetherimide (PEI)	Bulkhead - Front Side Nut	18	Keyed	Threading Adapter	For Male Pins	Polyamide (PA66), Nylon 6/6, Glass Filled			IP68 - Dust Tight, Waterproof	UL94 V-0	-55 °C	125 °C	Circular	Crimp	Contacts Not Included, Jam Nut Not Included	18	24			12 (3), 16 (14), 8 (1)
TE Connectivity Deutsch Connectors YHDP24-18-14PEC041	Black	16	Receptacle Housing	Bayonet Lock	Unshielded	Plastic	Polyetherimide (PEI)	Bulkhead - Front Side Nut	14	Keyed		For Male Pins	Polyamide (PA66), Nylon 6/6, Glass Filled			IP68 - Dust Tight, Waterproof	UL94 V-0	-55 °C	125 °C	Circular	Crimp	Contacts Not Included, Jam Nut Not Included			18-14
TE Connectivity Deutsch Connectors YHDP24-18-14PEL024	Black	16	Receptacle Housing	Bayonet Lock	Unshielded	Plastic	Polyetherimide (PEI)	Bulkhead - Front Side Nut	14	Keyed	Threading Adapter	For Male Pins	Polyamide (PA66), Nylon 6/6, Glass Filled			IP68 - Dust Tight, Waterproof	UL94 V-0	-55 °C	125 °C	Circular	Crimp	Contacts Not Included, Jam Nut Not Included			18-14
