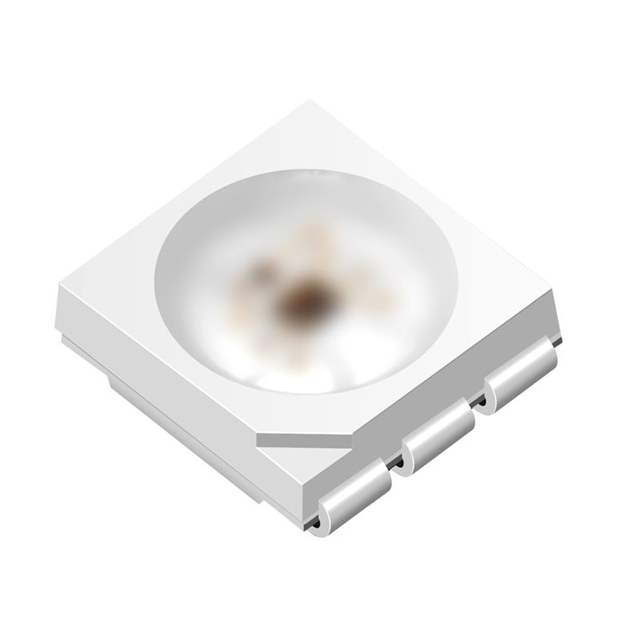

XZM2CRKDGKCBD107S-IC

Active

SunLED

ADDRESS LED DISCRETE RGB 5X5MM

Search across all available documentation for this part.

Active

SunLED

ADDRESS LED DISCRETE RGB 5X5MM

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Color	Configuration	Number of LEDs	Mounting Type	Lens Transparency	Viewing Angle	Wavelength - Peak	Lens Color	Current - Test [custom]	Current - Test [custom]	Package / Case	Lens Style	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Supplier Device Package	Height (Max) [Max] [z]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]
SunLED XZM2CRKDGKCBD107S-IC	5 mm	5 mm	Blue Green Red	Discrete	1	Surface Mount
SunLED XZM2CRKM2DG45WT-9	3.2 mm	2.8 mm	Green Red	Independent		Surface Mount	Clear	120 °	520 nm 640 nm	Colorless	20 mA	20 mA	4-PLCC	Rectangle with Flat Top	2.2 V 3.2 V	447 mcd 1590 mcd	4-PLCC	2.1 mm	525 nm	625 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Addressable Lighting - 1 LED Discrete Red, Green, Blue (RGB) 5.00mm L x 5.00mm W
