PPTC282KFMS

Obsolete

Sullins Connector Solutions

CONN HDR 56POS 0.1 TIN SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

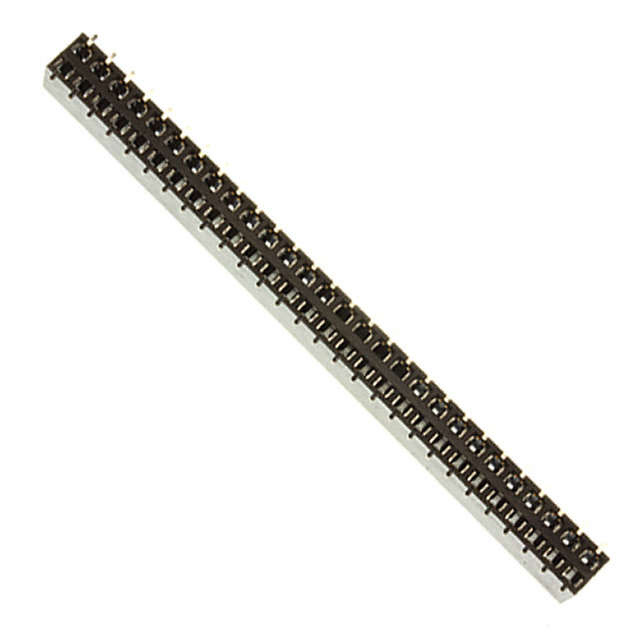

PPTC282KFMS

Obsolete

Sullins Connector Solutions

CONN HDR 56POS 0.1 TIN SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC282KFMS

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.299 in
Insulation Height	7.6 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	56
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

PPTC282 Series

Part	Contact Shape	Voltage Rating	Number of Positions	Number of Rows	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Insulation Color	Material Flammability Rating	Current Rating (Amps)	Fastening Type	Contact Type	Contact Material	Mounting Type	Connector Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post [x]	Number of Positions Loaded	Termination	Contact Length - Post
Sullins Connector Solutions PPTC282LFBN-RC	Square	250 VDC	56	2	Polyester	-40 °C	105 ░C	0.1 in	2.54 mm	2.54 mm	0.1 in	Tin	Black	UL94 V-0	3 A	Push-Pull	Female Socket	Phosphor Bronze	Through Hole	Header	0.335 "	8.51 mm	3.2 mm	0.126 in	All	Solder
Sullins Connector Solutions PPTC282LFBN	Square	250 VDC	56	2	Polyester	-40 °C	105 ░C	0.1 in	2.54 mm	2.54 mm	0.1 in	Tin	Black	UL94 V-0	3 A	Push-Pull	Female Socket	Phosphor Bronze	Through Hole	Header	0.335 "	8.51 mm	3.2 mm	0.126 in	All	Solder
Sullins Connector Solutions PPTC282KFMS	Square	250 VDC	56	2	Polyester	-40 °C	125 °C	0.1 in	2.54 mm	2.54 mm	0.1 in	Tin	Black	UL94 V-0	3 A	Push-Pull	Female Socket	Phosphor Bronze	Surface Mount	Header	0.299 in	7.6 mm			All	Solder
Sullins Connector Solutions PPTC282LJBN-RC	Square	250 VDC	56	2	Polyester	-40 °C	105 ░C	0.1 in	2.54 mm	2.54 mm	0.1 in	Tin	Black	UL94 V-0	3 A	Push-Pull	Female Socket	Phosphor Bronze	Through Hole Right Angle	Header			3.15 mm		All	Solder	0.124 "
Sullins Connector Solutions PPTC282LJBN	Square	250 VDC	56	2	Polyester	-40 °C	105 ░C	0.1 in	2.54 mm	2.54 mm	0.1 in	Tin	Black	UL94 V-0	3 A	Push-Pull	Female Socket	Phosphor Bronze	Through Hole Right Angle	Header			3.15 mm		All	Solder	0.124 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PPTC282 Series

56 Position Header Connector 0.100" (2.54mm) Surface Mount Tin
