9180 0601000

Active

Belden Inc.

MULTIPAIR CABLE, SHIELDED, 1 PAIR, 26 AWG, 0.13 MM², 1000 FT, 304.8 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

9180 0601000

Active

Belden Inc.

MULTIPAIR CABLE, SHIELDED, 1 PAIR, 26 AWG, 0.13 MM², 1000 FT, 304.8 M

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9180 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG
Jacket (Insulation) Diameter [diameter]	0.144 in
Jacket (Insulation) Diameter [diameter]	3.66 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.022 in
Jacket (Insulation) Thickness	0.559 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Control, Audio, Communication
Voltage	300 V
Wire Gauge	26 AWG

9180 Series

Part	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Shield Type	Cable Type	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Number of Conductors	Shield Coverage	Shield Material	Voltage	Usage	Conductor Insulation	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Strand
Belden Inc. 9180 0601000	UL Style CMR	0.022 in	0.559 mm	1000 ft	304.8 m	Foil	Multi-Conductor	Copper Tinned	-40 °C	75 ░C	26 AWG	2	100 %	Aluminum Polyester	300 V	Audio Communication Control	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC)	0.144 in	3.66 mm	Chrome	7 Strands 34 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.08
Newark	Spool of 1000	1	$ 1293.79
		5	$ 1243.76
		10	$ 1200.87

Description

General part information

9180 Series

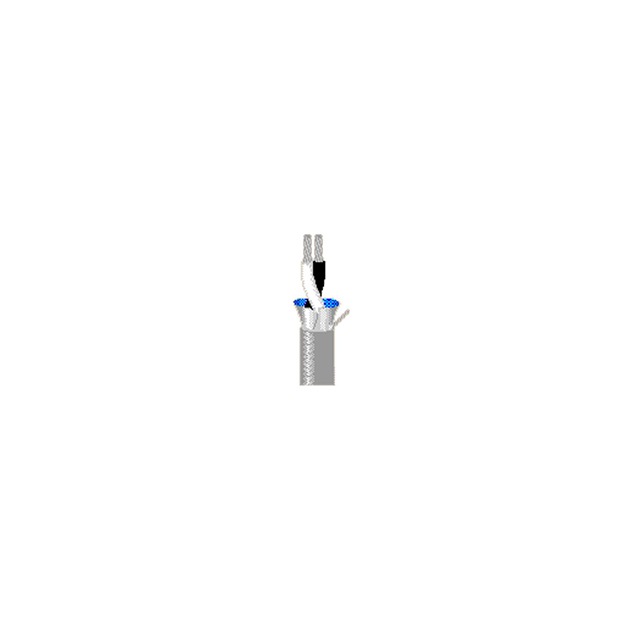

The 9180 0601000 is a 1000ft 1-pair 2-conductor shielded Cable with stranded tinned copper conductors and foam fluorinated ethylene propylene insulation. It has twisted pair overall shielded with 100% aluminium foil-polyester tape.
