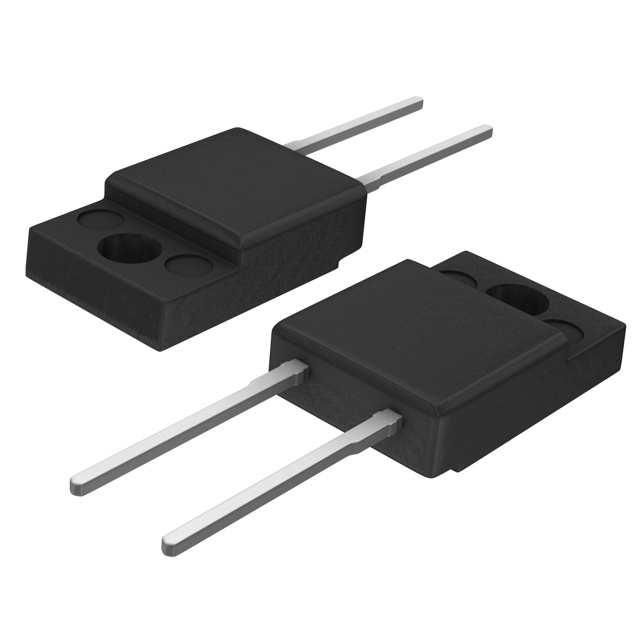

STTH802FP

Active

STMicroelectronics

RECTIFIER DIODE, SINGLE, 200 V, 8 A, 1.05 V, 30 NS, 70 A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAN5028 AN5046 +6

STTH802FP

Active

STMicroelectronics

RECTIFIER DIODE, SINGLE, 200 V, 8 A, 1.05 V, 30 NS, 70 A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsAN5028 AN5046 +6

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.05
		50	$ 0.84
		100	$ 0.67
		500	$ 0.57
		1000	$ 0.56
Newark	Each	1	$ 1.09
		10	$ 1.00
		100	$ 0.73
		500	$ 0.65
		1000	$ 0.56
		2500	$ 0.48
		10000	$ 0.45

Description

General part information

STTH802 Series

The STTH802 uses ST's new 200 V planar Pt doping technology, and is specially suited for switching mode base drive and transistor circuits.

Packaged in TO-220AC, TO-220FPAC, DPAK, and D2PAK this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection.

Documents

Technical documentation and resources

Datasheet

Product Change Notice EN

Datasheet

Specification	STTH802FP	STTH802 Series

Current - Average Rectified (Io)	8 A	8 A
Current - Average Rectified (Io) (per Diode)	-	4 A
Current - Reverse Leakage @ Vr	6 µA	4 - 6 µA
Diode Configuration	-	1 Pair Common Cathode
Grade	-	Automotive
Mounting Type	Through Hole	Surface Mount, Through Hole
Operating Temperature - Junction	-	-40 °C
Operating Temperature - Junction [Max]	175 °C	175 °C
Package / Case	TO-220-2 Full Pack, Isolated Tab	SC-63, DPAK (2 Leads + Tab), TO-252-3, TO-220-2 Full Pack, Isolated Tab, D2PAK (2 Leads + Tab), TO-263AB, TO-263-3, TO-220-3 Full Pack
Qualification	-	AEC-Q101
Reverse Recovery Time (trr)	30 ns	20 - 30 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	-	DPAK, D2PAK, TO-220FP
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V	200 V
Voltage - Forward (Vf) (Max) @ If	-	1.1 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.05 V	1.05 V

Part	Technology	Mounting Type	Speed	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Supplier Device Package	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Qualification	Operating Temperature - Junction [Min]	Grade	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io) (per Diode)	Diode Configuration
STMicroelectronics STTH802B-TR	Standard	Surface Mount	200 mA, 500 ns	1.05 V	DPAK (2 Leads + Tab), SC-63, TO-252-3	DPAK	175 °C	200 V	8 A	30 ns	6 µA
STMicroelectronics STTH802BY-TR	Standard	Surface Mount	200 mA, 500 ns	1.05 V	DPAK (2 Leads + Tab), SC-63, TO-252-3	DPAK	175 ░C	200 V	8 A	30 ns	6 µA	AEC-Q101	-40 °C	Automotive
STMicroelectronics STTH802FP	Standard	Through Hole	200 mA, 500 ns	1.05 V	TO-220-2 Full Pack, Isolated Tab		175 °C	200 V	8 A	30 ns	6 µA
STMicroelectronics STTH802G-TR	Standard	Surface Mount	200 mA, 500 ns	1.05 V	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	D2PAK	175 °C	200 V	8 A	30 ns	6 µA
STMicroelectronics STTH802CFP	Standard	Through Hole	200 mA, 500 ns		TO-220-3 Full Pack	TO-220FP	175 °C	200 V		20 ns	4 µA				1.1 V	4 A	1 Pair Common Cathode
STMicroelectronics STTH802B	Standard	Surface Mount	200 mA, 500 ns	1.05 V	DPAK (2 Leads + Tab), SC-63, TO-252-3	DPAK	175 °C	200 V	8 A	30 ns	6 µA
