SRN2510BTA-4R7M

Active

Bourns Inc.

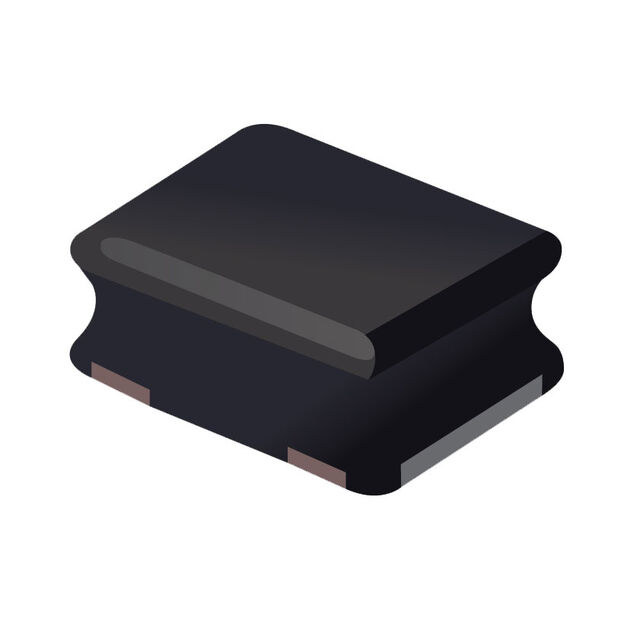

POWER INDUCTOR, SMD, 4.7UH, 1.4A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRN2510BTA-4R7M

Active

Bourns Inc.

POWER INDUCTOR, SMD, 4.7UH, 1.4A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRN2510BTA-4R7M

Current - Saturation (Isat)	1.2 A
Current Rating (Amps)	1.4 A
DC Resistance (DCR) [Max]	300 mOhm
Frequency - Self Resonant	45 MHz
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Inductance	4.7 ÁH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1008
Q @ Freq	1 MHz, 10
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Supplier Device Package	2510
Tolerance	20 %
Type	Wirewound, Drum Core

SRN2510BTA Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Tolerance	Ratings	Frequency - Self Resonant	Material - Core	Supplier Device Package	Package / Case	Current - Saturation (Isat)	Type	Mounting Type	Inductance	Current Rating (Amps)	Shielding	Q @ Freq
Bourns Inc. SRN2510BTA-R47M	0.098 "	2 mm	2.5 mm	0.079 in	-55 °C	125 °C	0.039 "	1 mm	100 kHz	35 mOhm	20 %	AEC-Q200	180 MHz	Ferrite	2510	1008	3.3 A	Drum Core Wirewound	Surface Mount	470 nH	3 A	Shielded	1 MHz 15
Bourns Inc. SRN2510BTA-1R5M	0.098 "	2 mm	2.5 mm	0.079 in	-55 °C	125 °C	0.039 "	1 mm	100 kHz	96 mOhm	20 %	AEC-Q200	85 MHz	Ferrite	2510	1008	2.1 A	Drum Core Wirewound	Surface Mount	1.5 µH	2.4 A	Shielded	1 MHz 10
Bourns Inc. SRN2510BTA-3R3M	0.098 "	2 mm	2.5 mm	0.079 in	-55 °C	125 °C	0.039 "	1 mm	100 kHz	204 mOhm	20 %	AEC-Q200	53 MHz	Ferrite	2510	1008	1.3 A	Drum Core Wirewound	Surface Mount	3.3 µH	1.7 A	Shielded	1 MHz 10
Bourns Inc. SRN2510BTA-2R2M	0.098 "	2 mm	2.5 mm	0.079 in	-55 °C	125 °C	0.039 "	1 mm	100 kHz	132 mOhm	20 %	AEC-Q200	72 MHz	Ferrite	2510	1008		Drum Core Wirewound	Surface Mount	2.2 µH	2 A	Shielded	1 MHz 10
Bourns Inc. SRN2510BTA-6R8M	0.098 "	2 mm	2.5 mm	0.079 in	-55 °C	125 °C	0.039 "	1 mm	100 kHz	444 mOhm	20 %	AEC-Q200	36 MHz	Ferrite	2510	1008	950 mA	Drum Core Wirewound	Surface Mount	6.8 µH	1.2 A	Shielded	1 MHz 10
Bourns Inc. SRN2510BTA-4R7M	0.098 "	2 mm	2.5 mm	0.079 in	-55 °C	125 °C	0.039 "	1 mm	100 kHz	300 mOhm	20 %	AEC-Q200	45 MHz	Ferrite	2510	1008	1.2 A	Drum Core Wirewound	Surface Mount	4.7 ÁH	1.4 A	Shielded	1 MHz 10
