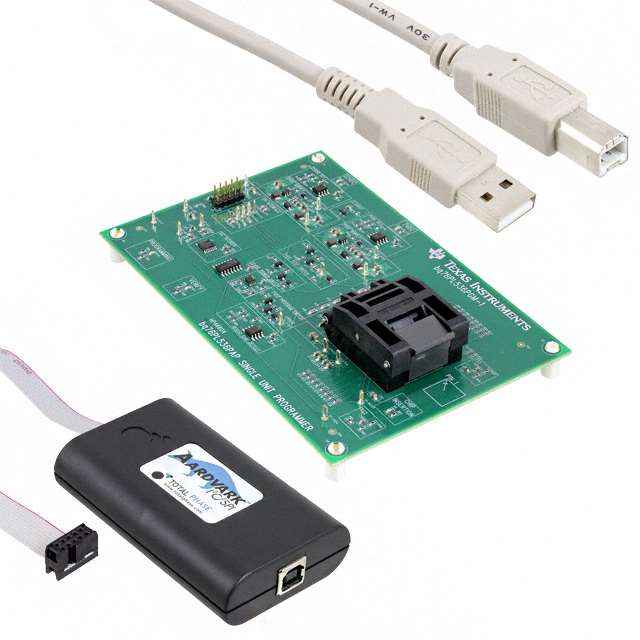

BQ76PL536PGM-1
ActiveTexas Instruments
BOARD PROG FOR BQ76PL536-1
Deep-Dive with AI
Search across all available documentation for this part.
BQ76PL536PGM-1
ActiveTexas Instruments
BOARD PROG FOR BQ76PL536-1
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ76PL536PGM-1 | BQ76PL536 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion |
| Contents | Board(s), Cable(s) | Board(s), Cable(s) |
| Embedded | - | Yes, MCU, 16-Bit |
| Fault Protection | - | Over/Under Voltage, Over Temperature |
| For Use With/Related Products | BQ76PL536 | BQ76PL536 |
| Function | - | Multi-Function Controller, Battery Monitor |
| Grade | - | Automotive |
| Interface | - | SPI |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 3 |
| Number of Cells | - | 6 |
| Operating Temperature | - | 85 - 105 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 64-PowerTQFP |
| Qualification | - | AEC-Q100 |
| Supplied Contents | - | Accessories, Cable(s), Board(s) |
| Supplier Device Package | - | 64-HTQFP (10x10) |
| Type | Programmer | Programmer, Power Management |
| Utilized IC / Part | - | bq76PL536, MSP430F5529 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BQ76PL536 Series
LITHIUM-ION BATTERY MONITOR AND SECONDARY PROTECTION IC FOR ELECTRIC AND HYBRID ELECTRIC VEHICLE
| Part | Package / Case | Number of Cells [Min] | Number of Cells [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Function | Fault Protection | Interface | Battery Chemistry | Supplier Device Package | Mounting Type | Qualification | Grade | For Use With/Related Products | Contents | Type | Utilized IC / Part | Supplied Contents | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ76PL536PAPR | 64-PowerTQFP | 3 | 6 | 85 °C | -40 °C | Multi-Function Controller | Over Temperature, Over/Under Voltage | SPI | Lithium Ion | 64-HTQFP (10x10) | Surface Mount | ||||||||
Texas Instruments BQ76PL536APAPT | 64-PowerTQFP | 3 | 6 | 85 °C | -40 °C | Multi-Function Controller | Over Temperature, Over/Under Voltage | SPI | Lithium Ion | 64-HTQFP (10x10) | Surface Mount | ||||||||
Texas Instruments BQ76PL536PAPT | 64-PowerTQFP | 3 | 6 | 85 °C | -40 °C | Multi-Function Controller | Over Temperature, Over/Under Voltage | SPI | Lithium Ion | 64-HTQFP (10x10) | Surface Mount | ||||||||
Texas Instruments BQ76PL536ATPAPTQ1 | 64-PowerTQFP | 3 | 6 | 105 °C | -40 °C | Multi-Function Controller | Over Temperature, Over/Under Voltage | SPI | Lithium Ion | 64-HTQFP (10x10) | Surface Mount | AEC-Q100 | Automotive | ||||||
Texas Instruments BQ76PL536TPAPRQ1 | 64-PowerTQFP | 3 | 6 | 105 °C | -40 °C | Multi-Function Controller | Over Temperature, Over/Under Voltage | SPI | Lithium Ion | 64-HTQFP (10x10) | Surface Mount | AEC-Q100 | Automotive | ||||||
Texas Instruments BQ76PL536PGM-1 | BQ76PL536 | Board(s), Cable(s) | Programmer | ||||||||||||||||
Texas Instruments BQ76PL536EVM-3 | Battery Monitor | Power Management | bq76PL536, MSP430F5529 | Accessories, Board(s), Cable(s) | Yes, MCU, 16-Bit | ||||||||||||||
Texas Instruments BQ76PL536APAPR | 64-PowerTQFP | 3 | 6 | 85 °C | -40 °C | Multi-Function Controller | Over Temperature, Over/Under Voltage | SPI | Lithium Ion | 64-HTQFP (10x10) | Surface Mount | ||||||||
Texas Instruments BQ76PL536TPAPTQ1 | 64-PowerTQFP | 3 | 6 | 105 °C | -40 °C | Multi-Function Controller | Over Temperature, Over/Under Voltage | SPI | Lithium Ion | 64-HTQFP (10x10) | Surface Mount | AEC-Q100 | Automotive | ||||||
Texas Instruments BQ76PL536ATPAPRQ1 | 64-PowerTQFP | 3 | 6 | 105 °C | -40 °C | Multi-Function Controller | Over Temperature, Over/Under Voltage | SPI | Lithium Ion | 64-HTQFP (10x10) | Surface Mount | AEC-Q100 | Automotive |
Description
General part information
BQ76PL536 Series
BQ76PL536 - Programmer
Documents
Technical documentation and resources
No documents available
