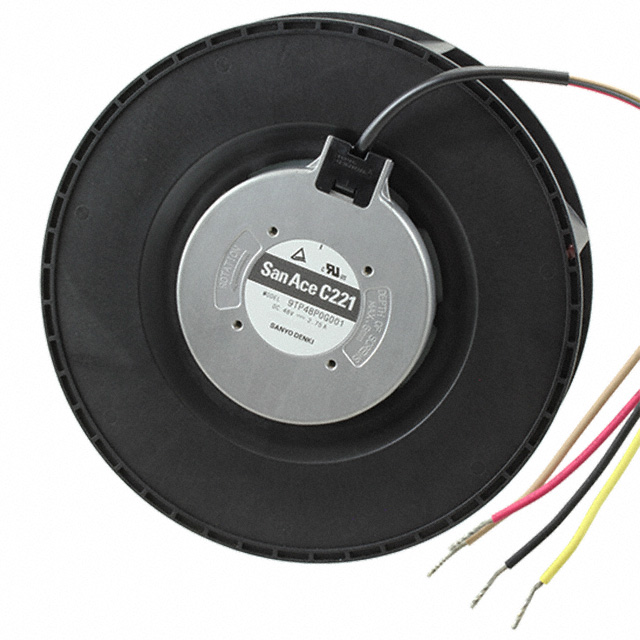

Specification	9TP48P0G001

Air Flow	742 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	2.75 A
Fan Type	Motorized Impellers
Features	PWM Control, Speed Sensor (Tach)
Lifetime	Varies Based on Temperature
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	74 dB
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	132 W
RPM	3650 RPM
Size / Dimension Diameter	221 mm
Size / Dimension Shape	Round
Static Pressure	3.052 in H2O
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	48 VDC
Voltage Range (Max)	72 VDC
Voltage Range (Min)	36 VDC
Weight	2.4 lbs
Width	71 mm

9T Type Series

Blowers & Centrifugal Fans Centrifugal Fan, 100x25mm Round, 48VDC, Tach/PWM, Inlet Nozzle Required 109-1080

Part	Size / Dimension Diameter	Size / Dimension Shape	Bearing Type	Approval Agency	Air Flow	RPM	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Rated	Width	Features	Termination Leads Count	Termination Type	Termination	Fan Type	Weight	Static Pressure	Noise	Power (Watts)	Material - Blade	Material - Frame	Current Rating	Voltage Range (Min)	Voltage Range (Max)	Lifetime	Lifetime	Fan Accessory Type	Fits Fan Size (Diameter)
Sanyo Denki America Inc. 9TG48P0G01	175 mm	Round	Ball	CSA TUV UL	494.7 CFM	4700 RPM	-4 °F	158 °F	48 VDC	69 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 leads	Wire Leads	4 Wire Leads	Motorized Impellers	1.7 lbs	3.55 in H2O	73 dB	93.6 W	Plastic	Aluminum	1.95 A	36 VDC	55.2 VDC	40000 Hrs
Sanyo Denki America Inc. 9TM48P4H01	100 mm	Round	Ball	CSA TUV UL	62.5 CFM	6400 RPM	-4 °F	158 °F	48 VDC	25 mm	PWM Control Speed Sensor (Tach)	4 leads	Wire Leads	4 Wire Leads	Motorized Impellers	0.331 lb	2.25 in H2O	60 dB	10.56 W	Plastic	Aluminum	0.22 A	36 VDC	60 VDC	40000 Hrs
Sanyo Denki America Inc. 9TP48P0G001	221 mm	Round	Ball	CSA TUV UL	742 CFM	3650 RPM	-20 °C	60 °C	48 VDC	71 mm	PWM Control Speed Sensor (Tach)	4 leads	Wire Leads	4 Wire Leads	Motorized Impellers	2.4 lbs	3.052 in H2O	74 dB	132 W	Plastic	Aluminum	2.75 A	36 VDC	72 VDC		Varies Based on Temperature
Sanyo Denki America Inc. 9TM24H403
Sanyo Denki America Inc. 9TS48P0H001	225 mm	Round	Ball	CSA TUV UL	802 CFM	2900 RPM	-4 °F	158 °F	48 VDC	99 mm	PWM Control Speed Sensor (Tach)	4 leads	Wire Leads	4 Wire Leads	Motorized Impellers	2.6 lbs	2.37 in H2O	70.5 dB	99.8 W
Sanyo Denki America Inc. 9TG24P0G01	175 mm	Round	Ball	CSA TUV UL	494.7 CFM	4700 RPM	-20 °C	60 °C	24 VAC	69 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 leads	Wire Leads	4 Wire Leads	Motorized Impellers	1.7 lbs	3.55 in H2O	73 dB	93.6 W	Plastic	Aluminum	3.9 A	20.4 VDC	27.6 VDC	40000 Hrs
Sanyo Denki America Inc. 109-1080																											Inlet Nozzle (Wall Ring)	100 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Handling Instructions for Fan Motors

Numbering System Centrifugal Fan
