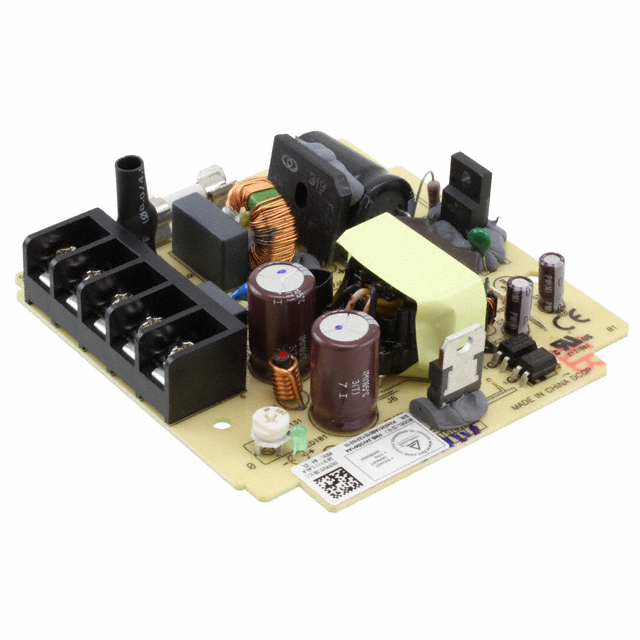

Specification	PMB-24V35W1AA

Applications	ITE (Commercial)
Approval Agency	CE, CCC, cURus, CB, TUVgs
Current - Output 1	1.46 A
Efficiency	85 %
Features	Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-10 °C
Power (Watts)	35 W
Size / Dimension Height	1.48 in
Size / Dimension Length	3.86 in
Size / Dimension Width	3.86 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	3 kV
Voltage - Output 1	24 V

PMB-24 Series

Part	Number of Outputs	Applications	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Power (Watts)	Features	Type	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Voltage - Isolation	Current - Output 1	Efficiency	Approval Agency	Mounting Type	Voltage - Output 1	Operating Temperature (Max)	Operating Temperature (Min)
Delta Electronics PMB-24V50W1AH	1	ITE (Commercial)	3.86 in	3.86 in	1.5 in	50 W	Adjustable Output Universal Input	Enclosed	85 VAC	264 V	3 kV	2.1 A	86 %	CB CCC CE cURus TUV	Chassis Mount	24 V	70 °C	-10 °C
Delta Electronics PMB-24V35W1AA	1	ITE (Commercial)	3.86 in	3.86 in	1.48 in	35 W	Adjustable Output Universal Input	Open Frame	85 VAC	264 V	3 kV	1.46 A	85 %	CB CCC CE cURus TUVgs	Chassis Mount	24 V	70 °C	-10 °C
Delta Electronics PMB-24V35W1AH	1	ITE (Commercial)	3.86 in	3.86 in	1.5 in	35 W	Adjustable Output Universal Input	Enclosed	85 VAC	264 V	3 kV	1.46 A	85 %	CB CCC CE cURus TUV	Chassis Mount	24 V	70 °C	-10 °C
