141085-2

Active

TE Connectivity AMP Connectors

CONN QC TAB 10-11.5AWG 0.250

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC TAB 10-11.5AWG 0.250

Technical Specifications

Parameters and characteristics for this part

Specification	141085-2

Color	Yellow
Contact Finish	Tin
Contact Material	Brass
Features	Serrated Termination
Gender	Male
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	0.224 in
Insulation Diameter [diameter]	5.69 mm
Length - Overall [x]	1.102 in
Length - Overall [x]	27.99 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	9.4 mm
Tab Length	0.37 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

CONN QC TAB 10-11.5AWG 0.250

Part	Tab Thickness	Tab Thickness	Features	Length - Overall [x]	Length - Overall [x]	Mounting Type	Color	Contact Finish	Tab Length	Tab Length	Wire Gauge [Max]	Wire Gauge [Min]	Gender	Termination	Tab Width	Tab Width	Contact Material	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Insulation	Terminal Type
TE Connectivity AMP Connectors 141085-2	0.032 in	0.81 mm	Serrated Termination	1.102 in	27.99 mm	Free Hanging (In-Line)	Yellow	Tin	9.4 mm	0.37 in	12 AWG	10 AWG	Male	Crimp	6.35 mm	0.25 in	Brass	0.224 in	5.69 mm	Non-Mating End Insulated	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

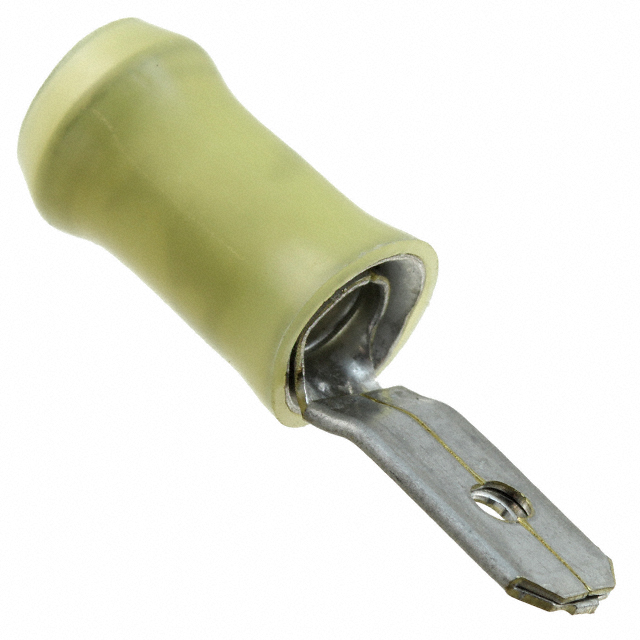

0.250" (6.35mm) Quick Connect Male 10-11.5 AWG Crimp Connector Non-Mating End Insulated
