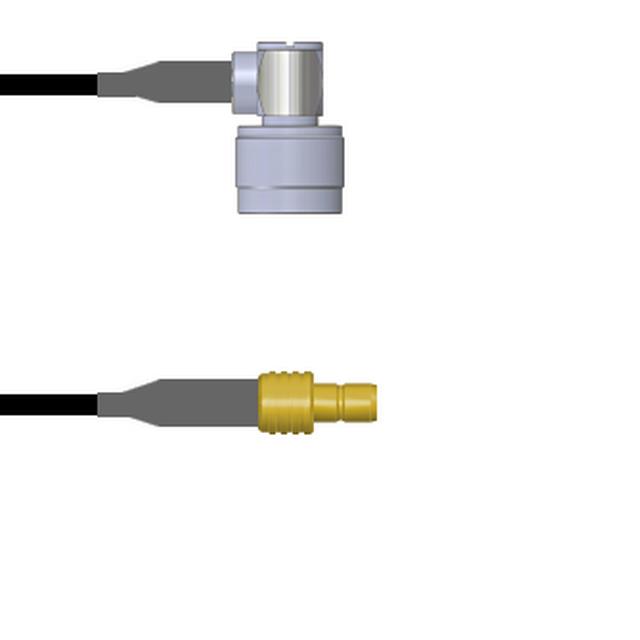

Q-2C03L0003108i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JACK-PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C03L0003108i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JACK-PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C03L0003108i

1st Connector	SMB Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2C03L0 Series

Part	Style	Frequency - Max [Max]	Features	2nd Contact Gender	Cable Type	1st Contact Gender	Overall Impedance	2nd Connector Mounting Type	1st Connector	2nd Connector	Length	Length	Length	1st Connector Mounting Type	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-2C03L0005003M	SMB to N-Type	4 GHz	Shielded	Male	RG-316	Male	50 Ohms	Free Hanging (In-Line)	SMB Jack	N-Type Plug Right Angle	3 m	118.1 in	9.8 '	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-2C03L0005072i	SMB to N-Type	4 GHz	Shielded	Male	RG-316	Male	50 Ohms	Free Hanging (In-Line)	SMB Jack	N-Type Plug Right Angle	1.8 m	72 in	6 ft	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-2C03L0003060i	SMB to N-Type	4 GHz	Shielded	Male	RG-174	Male	50 Ohms	Free Hanging (In-Line)	SMB Jack	N-Type Plug Right Angle	1.5 m	5 '	5 ft	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2C03L0003108i	SMB to N-Type	4 GHz	Shielded	Male	RG-174	Male	50 Ohms	Free Hanging (In-Line)	SMB Jack	N-Type Plug Right Angle	2.7 m	108 in	9 ft	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2C03L0005001M	SMB to N-Type	4 GHz	Shielded	Male	RG-316	Male	50 Ohms	Free Hanging (In-Line)	SMB Jack	N-Type Plug Right Angle	1 m	39.4 in	3.3 ft	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-2C03L0005006i	SMB to N-Type	4 GHz	Shielded	Male	RG-316	Male	50 Ohms	Free Hanging (In-Line)	SMB Jack	N-Type Plug Right Angle	152.4 mm	6 in		Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-2C03L0005060i	SMB to N-Type	4 GHz	Shielded	Male	RG-316	Male	50 Ohms	Free Hanging (In-Line)	SMB Jack	N-Type Plug Right Angle	1.5 m	5 '	5 ft	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-2C03L0005036i	SMB to N-Type	4 GHz	Shielded	Male	RG-316	Male	50 Ohms	Free Hanging (In-Line)	SMB Jack	N-Type Plug Right Angle	91.44 cm	36 in		Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-2C03L0005108i	SMB to N-Type	4 GHz	Shielded	Male	RG-316	Male	50 Ohms	Free Hanging (In-Line)	SMB Jack	N-Type Plug Right Angle	2.7 m	108 in	9 ft	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-2C03L0003.25M	SMB to N-Type	4 GHz	Shielded	Male	RG-174	Male	50 Ohms	Free Hanging (In-Line)	SMB Jack	N-Type Plug Right Angle				Free Hanging (In-Line)	Black	9.843 "	250 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 80.31
		25	$ 78.75
		50	$ 77.19
		100	$ 75.63
		250	$ 74.07

Description

General part information

Q-2C03L0 Series

Cable Assembly Coaxial SMB to N-Type RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
