ADC-114B-4-WP-HT-T/R

Active

Adam Tech

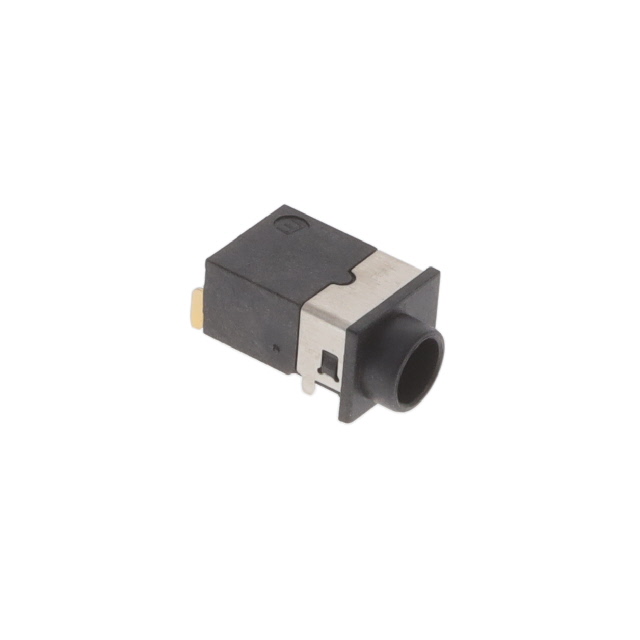

DC POWER JACK, WATERPROOF

Search across all available documentation for this part.

Active

Adam Tech

DC POWER JACK, WATERPROOF

Technical Specifications

Parameters and characteristics for this part

Specification	ADC-114B-4-WP-HT-T/R

Actual Diameter [custom]	0.051 in
Actual Diameter [custom]	3.8 mm
Actual Diameter [custom]	1.3 mm
Actual Diameter [custom]	0.15 in
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Gold
Current Rating (Amps)	3.5 A
Features	Solder Retention, Board Guide
Gender	Male
Housing Material	Thermoplastic
Industry Recognized Mating Diameter [custom]	0.138 in
Industry Recognized Mating Diameter [custom]	3.5 mm
Industry Recognized Mating Diameter [custom]	1.3 mm
Industry Recognized Mating Diameter [custom]	0.051 in
Ingress Protection	IPX7 - Waterproof
Insulation Color	Black
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth	0.374 in
Mating Length/Depth	9.5 mm
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Shielding	Shielded
Termination	Solder
Voltage - Rated	16 V

Part	Connector Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Features	Shielding	Internal Switch(s)	Contact Material - Plating [custom]	Body Color	Material Flammability Rating	Number of Positions/Contacts	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Mounting Type	Insulation Color	Housing Material	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Contact Material	Current Rating (Amps)	Mating Length/Depth	Mating Length/Depth	Ingress Protection	Voltage - Rated
Adam Tech ADC-114B-4-WP-HT-T/R	Jack	Male	-20 C	70 °C	Solder	Board Guide Solder Retention	Shielded	Normally Closed Single Switch	Gold	Black	UL94 V-0	2 Conductors 3 Conductors	0.138 in	3.5 mm	1.3 mm	0.051 in	Through Hole Right Angle	Black	Thermoplastic	0.051 in	3.8 mm	1.3 mm	0.15 in	Copper Alloy	3.5 A	0.374 in	9.5 mm	IPX7 - Waterproof	16 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 1.30mm ID (0.051"), 3.50mm OD (0.138") Through Hole, Right Angle
