CCL007A

Active

Essentra Access Solutions

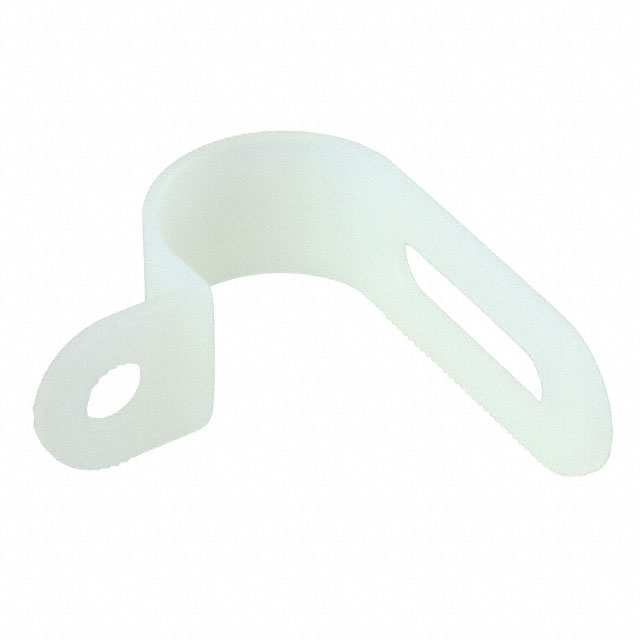

CABLE CLAMP - SCREW MOUNT, NYLON

Search across all available documentation for this part.

Active

Essentra Access Solutions

CABLE CLAMP - SCREW MOUNT, NYLON

Technical Specifications

Parameters and characteristics for this part

Specification	CCL007A

Bundle Center to Mounting Center	18.2 mm
Bundle Center to Mounting Center	0.717 in
Color	Natural
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.063 in
Material Thickness	1.6 mm
Mounting Type	Fastener
Opening Size [x]	0.625 in
Opening Size [x]	15.88 mm
Panel Hole Size	0.181 in
Panel Hole Size	4.6 mm
Screw Size	M4
Screw Size	#8
Type	Clamp, P-Type
Width	12 mm
Width	0.472 in

Part	Type	Panel Hole Size	Panel Hole Size	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Material Flammability Rating	Mounting Type	Color	Opening Size [x]	Opening Size [x]	Material Thickness	Material Thickness	Material	Width	Width	Screw Size	Screw Size
Essentra Access Solutions CCL007A	Clamp P-Type	0.181 in	4.6 mm	18.2 mm	0.717 in	UL94 V-2	Fastener	Natural	0.625 in	15.88 mm	0.063 in	1.6 mm	Polyamide (PA66) Nylon 6/6	12 mm	0.472 in	M4	#8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clamp, P-Type Natural Fastener 0.625" (15.88mm)
