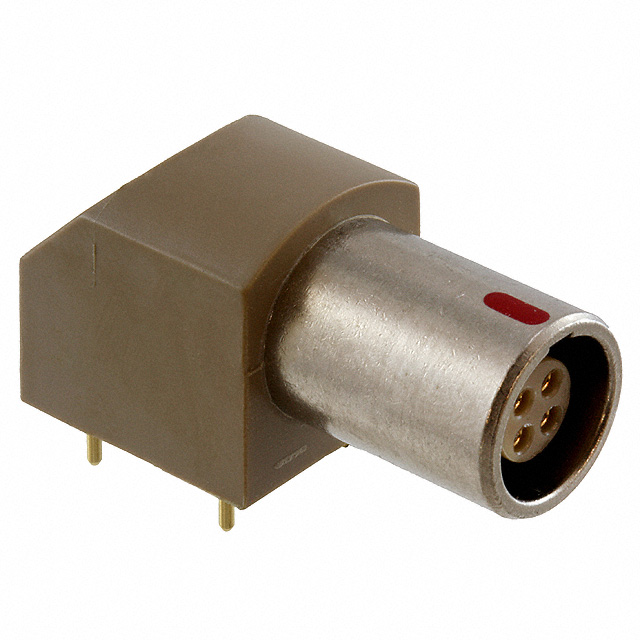

EPG.0B.304.HLNS
ActiveLEMO
CONN RCPT FMALE 4POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPG.0B.304.HLNS
ActiveLEMO
CONN RCPT FMALE 4POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EPG.0B.304.HLNS | EPG.0B Series |
|---|---|---|
| Color | Brown, Silver | Brown, Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 4.5 A | 1.5 - 4.5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | - | Ground |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 4 | 2 - 9 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Brass and Polyphenylene Sulfide (PPS) | Brass and Polyphenylene Sulfide (PPS) |
| Shell Size - Insert | 304 | 302 - 309 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
EPG.0B Series
CONN RCPT FMALE 7POS GOLD SOLDER
| Part | Shell Finish | Shell Size - Insert | Shell Material | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Primary Material | Insert Material | Connector Type | Mounting Type | Shielding | Number of Positions | Contact Finish - Mating | Termination | Fastening Type | Color | Ingress Protection | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EPG.0B.307.HLNS | Nickel | 307 | Brass and Polyphenylene Sulfide (PPS) | Bronze | 59 Áin | 1.5 Ám | 2 A | Metal | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | Through Hole, Right Angle | Shielded | 7 | Gold | Solder | Push-Pull | Brown, Silver | IP50 | UL94 V-0 | -55 °C | 250 °C | G | |
LEMO EPG.0B.304.HLN | Nickel | 304 | Brass and Polyphenylene Sulfide (PPS) | Bronze | 59 Áin | 1.5 Ám | 4.5 A | Metal | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | Through Hole, Right Angle | Shielded | 4 | Gold | Solder | Push-Pull | Brown, Silver | IP50 | UL94 V-0 | -55 °C | 250 °C | G | Ground |
LEMO EPG.0B.309.HLN | Nickel | 309 | Brass and Polyphenylene Sulfide (PPS) | Bronze | 59 Áin | 1.5 Ám | 1.5 A | Metal | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | Through Hole, Right Angle | Shielded | 9 | Gold | Solder | Push-Pull | Brown, Silver | IP50 | UL94 V-0 | -55 °C | 250 °C | G | Ground |
LEMO EPG.0B.302.HLN | Nickel | 302 | Brass and Polyphenylene Sulfide (PPS) | Bronze | 59 Áin | 1.5 Ám | 4.5 A | Metal | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | Through Hole, Right Angle | Shielded | 2 | Gold | Solder | Push-Pull | Brown, Silver | IP50 | UL94 V-0 | -55 °C | 250 °C | G | Ground |
LEMO EPG.0B.304.HLNS | Nickel | 304 | Brass and Polyphenylene Sulfide (PPS) | Bronze | 59 Áin | 1.5 Ám | 4.5 A | Metal | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | Through Hole, Right Angle | Shielded | 4 | Gold | Solder | Push-Pull | Brown, Silver | IP50 | UL94 V-0 | -55 °C | 250 °C | G | |
LEMO EPG.0B.306.HLN | Nickel | 306 | Brass and Polyphenylene Sulfide (PPS) | Bronze | 59 Áin | 1.5 Ám | 2.5 A | Metal | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | Through Hole, Right Angle | Shielded | 6 | Gold | Solder | Push-Pull | Brown, Silver | IP50 | UL94 V-0 | -55 °C | 250 °C | G | Ground |
LEMO EPG.0B.307.HLN | Nickel | 307 | Brass and Polyphenylene Sulfide (PPS) | Bronze | 59 Áin | 1.5 Ám | 2 A | Metal | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | Through Hole, Right Angle | Shielded | 7 | Gold | Solder | Push-Pull | Brown, Silver | IP50 | UL94 V-0 | -55 °C | 250 °C | G | Ground |
LEMO EPG.0B.305.HLN | Nickel | 305 | Brass and Polyphenylene Sulfide (PPS) | Bronze | 59 Áin | 1.5 Ám | 4.5 A | Metal | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | Through Hole, Right Angle | Shielded | Gold | Solder | Push-Pull | Brown, Silver | IP50 | UL94 V-0 | -55 °C | 250 °C | G | Ground |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.65 | |
Description
General part information
EPG.0B Series
4 Position Circular Connector Receptacle, Female Sockets Solder
