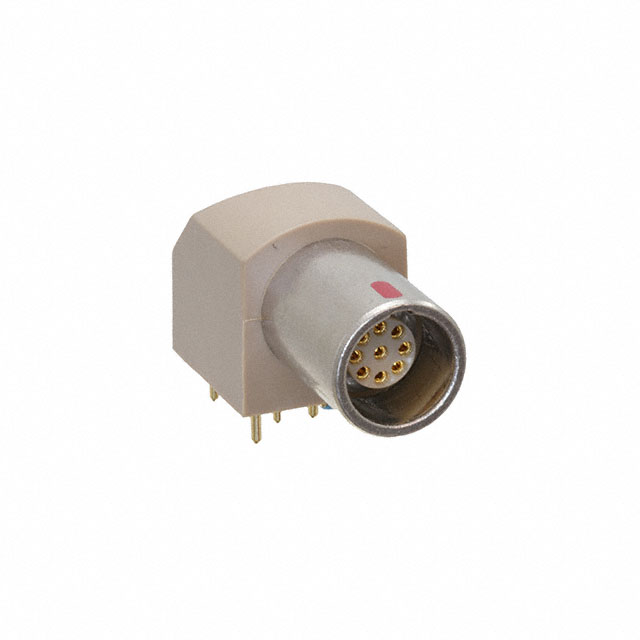

EPG.0B.309.HLN

Active

LEMO

CONN RCPT FMALE 9POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EPG.0B.309.HLN

Active

LEMO

CONN RCPT FMALE 9POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EPG.0B.309.HLN	EPG.0B Series

Color	Brown, Silver	Brown, Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	1.5 A	1.5 - 4.5 A
Fastening Type	Push-Pull	Push-Pull
Features	Ground	Ground
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	9	2 - 9
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	309	302 - 309
Shielding	Shielded	Shielded
Termination	Solder	Solder

EPG.0B Series

CONN RCPT FMALE 7POS GOLD SOLDER

Part	Shell Finish	Shell Size - Insert	Shell Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Primary Material	Insert Material	Connector Type	Mounting Type	Shielding	Number of Positions	Contact Finish - Mating	Termination	Fastening Type	Color	Ingress Protection	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Features
LEMO EPG.0B.307.HLNS	Nickel	307	Brass and Polyphenylene Sulfide (PPS)	Bronze	59 Áin	1.5 Ám	2 A	Metal	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Through Hole, Right Angle	Shielded	7	Gold	Solder	Push-Pull	Brown, Silver	IP50	UL94 V-0	-55 °C	250 °C	G
LEMO EPG.0B.304.HLN	Nickel	304	Brass and Polyphenylene Sulfide (PPS)	Bronze	59 Áin	1.5 Ám	4.5 A	Metal	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Through Hole, Right Angle	Shielded	4	Gold	Solder	Push-Pull	Brown, Silver	IP50	UL94 V-0	-55 °C	250 °C	G	Ground
LEMO EPG.0B.309.HLN	Nickel	309	Brass and Polyphenylene Sulfide (PPS)	Bronze	59 Áin	1.5 Ám	1.5 A	Metal	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Through Hole, Right Angle	Shielded	9	Gold	Solder	Push-Pull	Brown, Silver	IP50	UL94 V-0	-55 °C	250 °C	G	Ground
LEMO EPG.0B.302.HLN	Nickel	302	Brass and Polyphenylene Sulfide (PPS)	Bronze	59 Áin	1.5 Ám	4.5 A	Metal	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Through Hole, Right Angle	Shielded	2	Gold	Solder	Push-Pull	Brown, Silver	IP50	UL94 V-0	-55 °C	250 °C	G	Ground
LEMO EPG.0B.304.HLNS	Nickel	304	Brass and Polyphenylene Sulfide (PPS)	Bronze	59 Áin	1.5 Ám	4.5 A	Metal	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Through Hole, Right Angle	Shielded	4	Gold	Solder	Push-Pull	Brown, Silver	IP50	UL94 V-0	-55 °C	250 °C	G
LEMO EPG.0B.306.HLN	Nickel	306	Brass and Polyphenylene Sulfide (PPS)	Bronze	59 Áin	1.5 Ám	2.5 A	Metal	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Through Hole, Right Angle	Shielded	6	Gold	Solder	Push-Pull	Brown, Silver	IP50	UL94 V-0	-55 °C	250 °C	G	Ground
LEMO EPG.0B.307.HLN	Nickel	307	Brass and Polyphenylene Sulfide (PPS)	Bronze	59 Áin	1.5 Ám	2 A	Metal	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Through Hole, Right Angle	Shielded	7	Gold	Solder	Push-Pull	Brown, Silver	IP50	UL94 V-0	-55 °C	250 °C	G	Ground
LEMO EPG.0B.305.HLN	Nickel	305	Brass and Polyphenylene Sulfide (PPS)	Bronze	59 Áin	1.5 Ám	4.5 A	Metal	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Through Hole, Right Angle	Shielded		Gold	Solder	Push-Pull	Brown, Silver	IP50	UL94 V-0	-55 °C	250 °C	G	Ground
